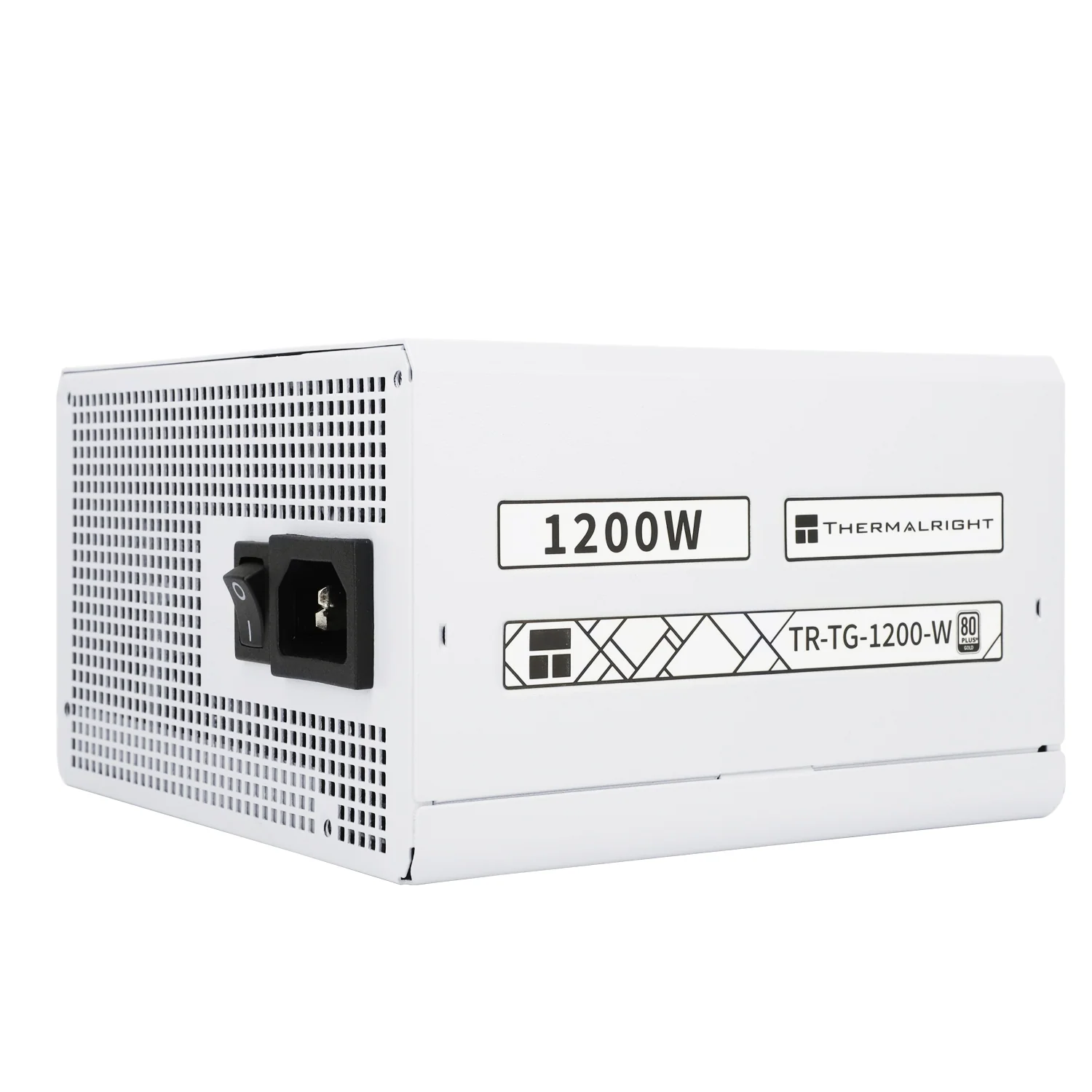

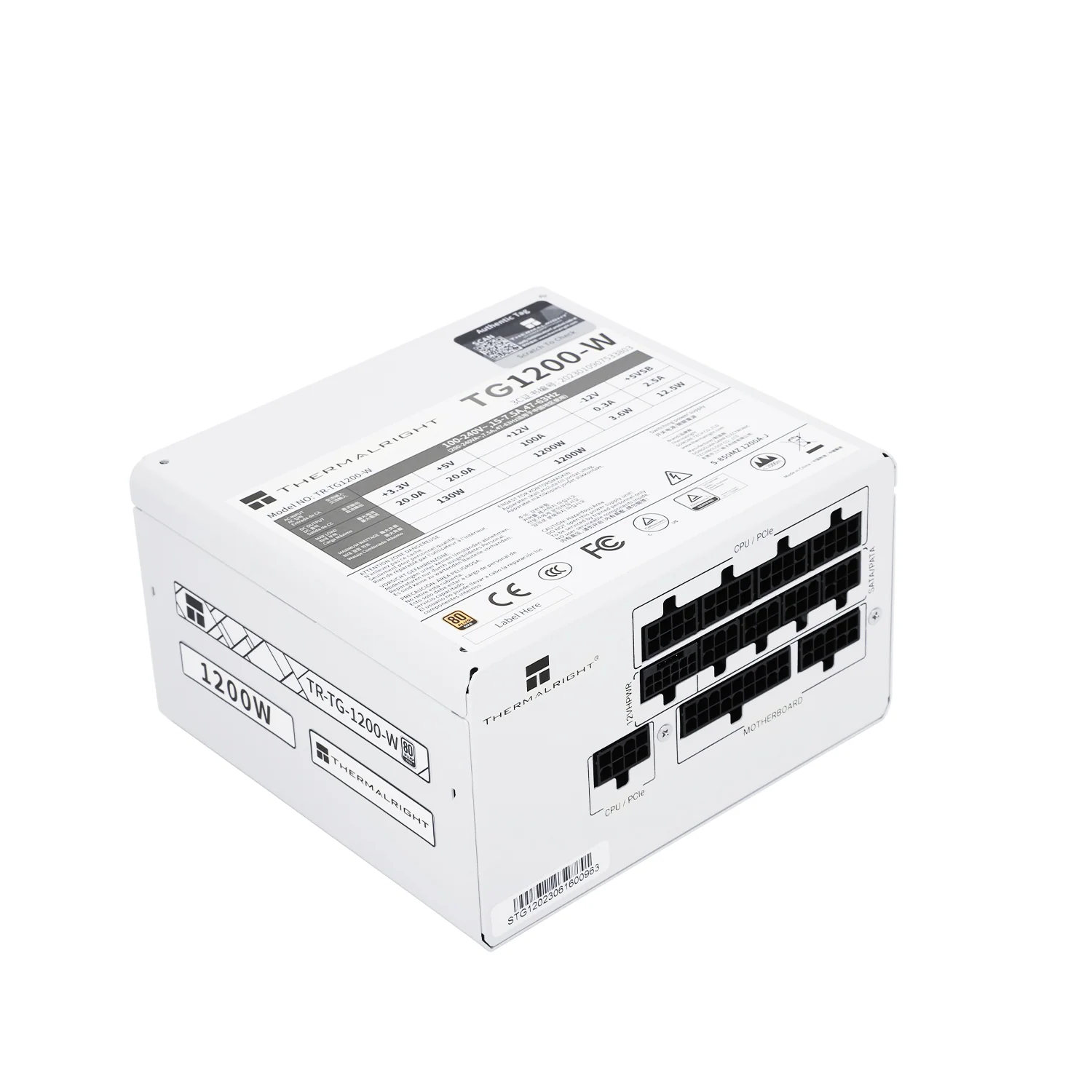

Thermalright TG1200 1200W Full Modular 80 PLUS Gold - White
Compact and Reliable Power with the Thermalright TG1200 1200W Full Modular 80 PLUS Gold Power Supply - White
Illuminate your build with the Thermalright TG1200 1200W Full Modular 80 PLUS Gold Power Supply in Whiteâa high-capacity PSU that combines robust power delivery with a striking white aesthetic. Offering 1200W of stable energy, ATX 3.0 and PCIe 5.0 compatibility, and a fully modular design, this unit is ideal for gamers, overclockers, and enthusiasts powering next-gen hardware like RTX 40-series GPUs. With 80 PLUS Gold efficiency, a quiet 120mm smart fan, and premium Japanese capacitors, the TG1200 White ensures efficient, reliable performance in a sleek, customizable package. Upgrade your rig with this powerhouse and enjoy top-tier power with a pristine, stylish edge.
Key Features
- 1200W Capacity: Provides substantial power for high-end CPUs, GPUs, and multi-component systems, supporting cutting-edge builds with plenty of overhead.
- 80 PLUS Gold Efficiency: Certified for up to 90% efficiency at typical loads, reducing energy waste and heat for cost-effective, eco-conscious operation.
- Fully Modular Design: Detachable flat cables in black allow for tailored setups, minimizing clutter and boosting airflow for a clean, white-themed build.
- ATX 3.0 & PCIe 5.0 Ready: Features a native 12VHPWR (12+4 pin) connector, meeting modern standards and handling transient power spikes up to 200% of rated output.
- Durable Components: Equipped with 105°C-rated Japanese electrolytic capacitors and an LLC resonant DC-DC design for stable voltage and long-lasting reliability.
- Quiet 120mm Fan: A temperature-controlled smart fan keeps noise low under typical loads, ramping up only when needed for efficient, unobtrusive cooling.
- Comprehensive Protections: Includes OPP (Over Power), OVP (Over Voltage), OTP (Over Temperature), OCP (Over Current), SCP (Short Circuit), and UVP (Under Voltage) safeguards for system safety.
Specifications
| Feature | Details |
|---|---|
| Dimensions | 150mm x 140mm x 86mm (±1mm) |
| Wattage | 1200W |
| Efficiency | 80 PLUS Gold (Up to 90% at Typical Load) |
| Modular | Full Modular (Detachable Flat Cables) |
| Input Voltage | 100-240Vac |
| Input Current | 15-7.5A |
| Input Frequency | 47-63Hz |
| Fan Size | 120mm |
| Bearing Type | Hydraulic |
| Noise Level | Low (Exact dBA Not Specified) |
| Connectors | 1x 20+4 Pin ATX (600mm), 2x 4+4 Pin CPU (650mm), 3x 6+2 Pin PCIe (650mm + 150mm), 1x 12VHPWR 12+4 Pin (600mm), 6x SATA, 4x Molex |
| Protections | OPP/OVP/OTP/OCP/SCP/UVP |
| MTBF | >100,000 Hours |
| Operating Temperature | 0-40°C |
| Compatibility | ATX Motherboards (Intel/AMD Systems) |
| Color | White (Cables in Black) |
| Warranty | 5 Years |
Why Choose the Thermalright TG1200 1200W Full Modular 80 PLUS Gold Power Supply - White?
- Compact and Portable: Standard ATX sizing (150mm x 140mm x 86mm) fits most cases, offering versatility for builds of all sizes or easy transport.
- Reliable Performance: 1200W of stable power with Gold efficiency and ATX 3.0/PCIE 5.0 support ensures your system powers modern and future hardware seamlessly.
- Stylish and Functional: The white finish adds a bold, clean aesthetic, while fully modular black cables enhance customization and airflow for a pristine interior.
- User-Friendly Design: Modular cabling simplifies installation, and the smart fan delivers quiet operation without compromising cooling efficiency.
- Premium Value: Offers high-end featuresâfuture-ready connectors, Japanese components, and robust protectionsâat a competitive price, outclassing many premium PSUs.
The Thermalright TG1200 1200W Full Modular 80 PLUS Gold Power Supply in White is your ultimate power solution for a high-performance, stylish PC. Whether youâre building a white-themed gaming titan or a future-proof workstation, this PSU provides the stability, efficiency, and flair you need to shine. Plug in today and let the TG1200 White drive your system with unmatched power and elegance.
