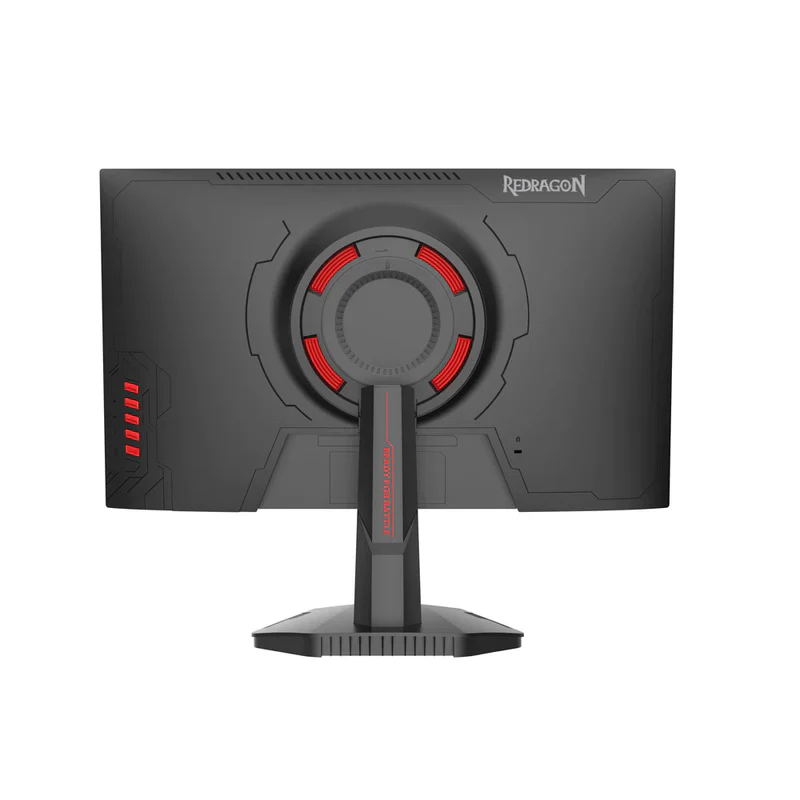

Redragon AZUR 24″ IPS 180Hz GM24X5 1MS GAMING MONITOR

Display size	23.8"  DiagoN/Al White LED-Backlight
Brightness(Typical)	250cd/m2 (Typical)
NTSC	90%(DCI-P3)
Contrast(Typical)	1000:1 (Typical)
Active Area(mm)	527.04(H)x296.46(V)
Pixel Pitch(mm)	0.2745(H)x0.2745(V)
Resolution (H x V)	1920 x 1080
Aspect Ratio	16:9
Response Time(Typical)	GTG 5ms  (W OD) / MPRT 1ms
View Angles LR,UD(CR>10)	H 178°/ V 178°
Panel Surface	Anti-glare
Display Colors	16.7M colors

PC Input Range:

Horizontal Freq.	30 to 180KHz
Vertical Freq.	48 to 165Hz
Max. display frequency (Resolution H*V/Fv)	1920 x 1080/180Hz

Interface:

Input 1	HDMI 1.4 x 2
Input 2	DP1.2  x1
Input 3	DC x1
Input 4	N/A

Output TermiN/Al

USB	N/A
Earphone	Audio out x 1
Speaker(Typic )	N/A

Power

Consumption(Typical)	On: 30W(Max） Standby<=0.5W, Off<=0.5W
Power Range	AC 100-240V 50/60Hz
Power Mode Indicator Light	Power on : White (LED) Power saving : White Flicker (LED)

Operating Condition

Temperature	0℃ ～ 40℃
Humidity	20% ~ 85%, non-condensing

Physical

Dimension (W*D*H)	541.93 x 214.53 x 438.02mm
Packing Dimension (W*D*H)	616 x 142 x 437mm
Net Weight	3.5 kg
Gross Weight	4.7 kg
Tilt	-5°±3°~  15°±3°
High Adjustable Arm	N/A
Swivel	N/A
Pivot	N/A
Kensington Lock	YES
VESA Mounting	YES 75 x 75 mm

Controls

Front Control	Menu, Up(+),Down(-),   Enter, Power
On Screen Display	HKC Standard OSD format
Color	WARM,COOL, User Mode
Preset Mode	Standard, Movie, Eye care,FPS,RTS

Accessory

Power Cable	N/A
Adapter	12V/2.5A
VGA Cable	N/A
Audio Cable	N/A
DVI Cable	N/A
HDMI-DVI Cable	N/A
HDMI-HDMI Cable	N/A
DP Cable	YES（1.5M）
User Manual(Paper)	YES

Loading Without pallet

40' HQ	1323
40' Standard	1134
20' 'Standard	540

Loading with pallet

40' HQ	TBD
40' Standard	TBD
20' 'Standard	TBD

Color plan: black
Green Product: (Jan. 2009): Yes
Certification: TBD
Windows 8: Yes
Windows 10: Yes
Others: PC99 function(must)，Flicker-free，blue-free,G-SYNC Comptible;Freesync(Adaptive sync)
