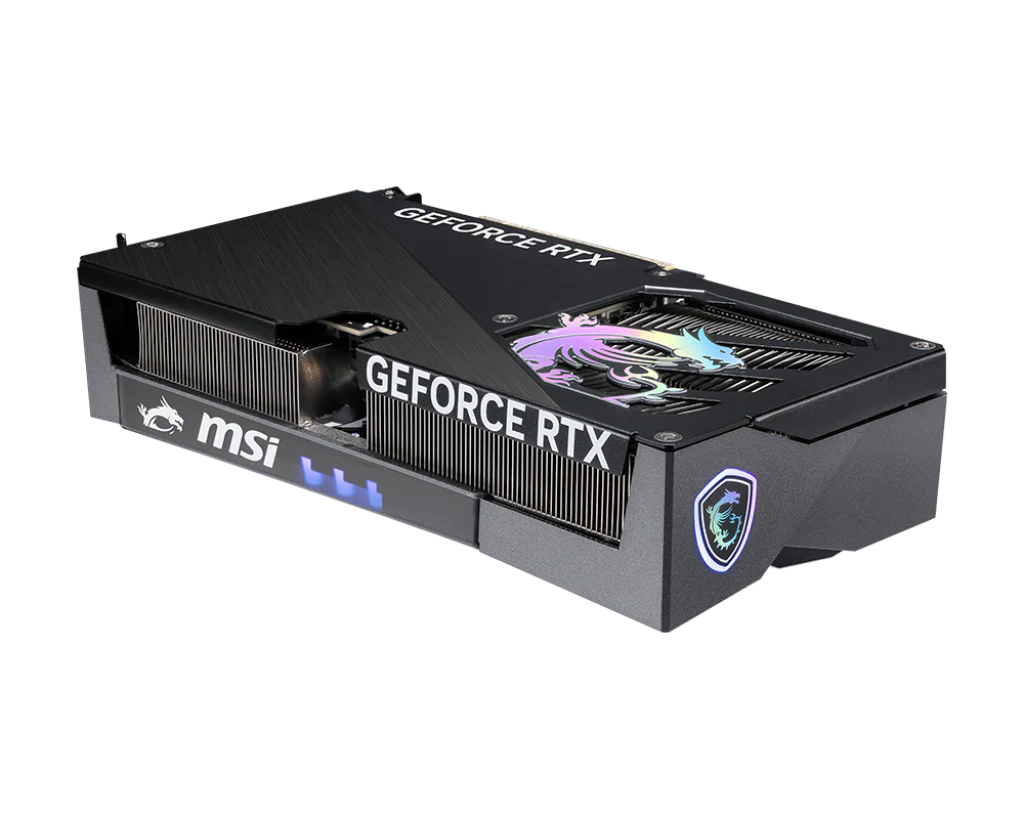

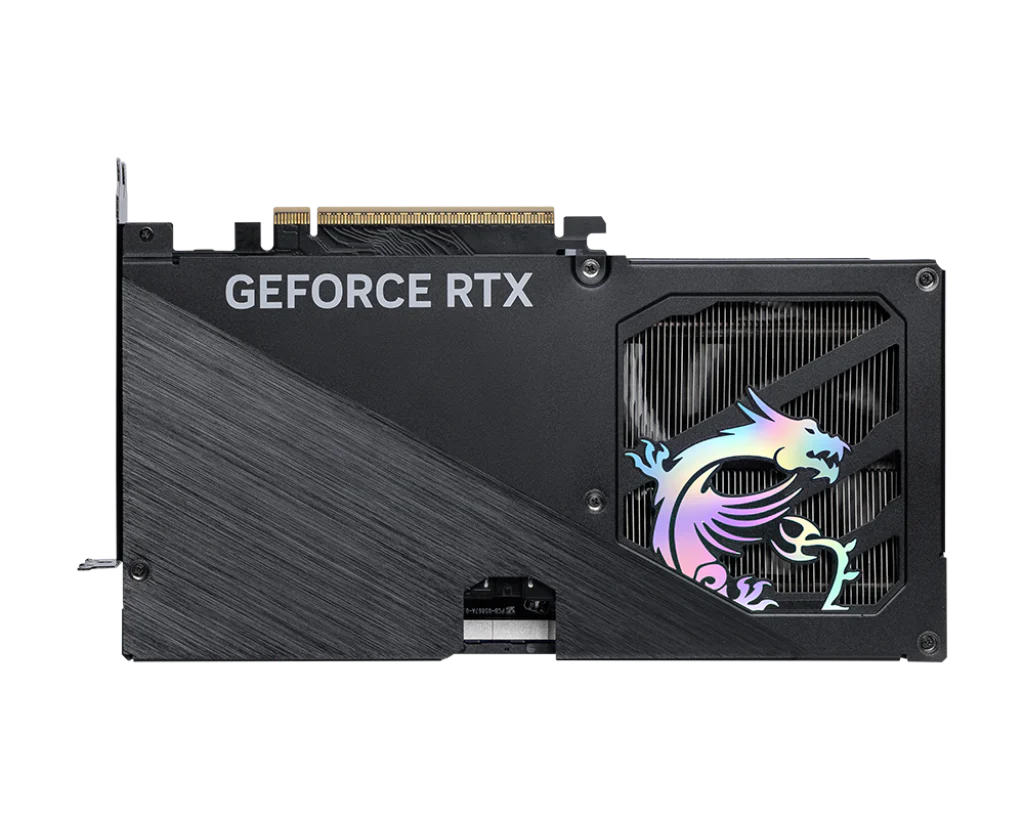

MSI Gaming GeForce 5060 Ti 8GB OC Edition - Graphics Card

🖥️ Overview The MSI GeForce RTX 5060 Ti 8GB OC is built on NVIDIA’s Blackwell architecture, delivering a big leap in AI‑driven rendering, ray tracing, and efficiency compared to the RTX 40‑series. With 8GB of ultra‑fast GDDR7 memory, DLSS 4 frame generation, and 4th‑gen RT cores, it’s designed for smooth 1080p Ultra and 1440p High/Ultra gaming. MSI’s GAMING OC cooler adds factory overclocking, improved thermals, and customizable RGB lighting.

⚙️ Key Features

• NVIDIA Blackwell Architecture

  • 4th‑Gen Ray Tracing Cores for realistic lighting & reflections

  • 5th‑Gen Tensor Cores with FP4 precision for AI acceleration

  • DLSS 4 with Multi‑Frame Generation for higher FPS

• 8GB GDDR7 Memory

  • 128‑bit interface

  • Faster bandwidth than GDDR6 for modern titles

• CUDA Cores & Clocks

  • ~4608 CUDA cores

  • Boost clock ~2535 MHz (varies by OC model)

• Cooling & Design (MSI GAMING OC)

  • TORX Fan 4.0: paired fan blades for focused airflow

  • Core Pipe: precision heatpipes for max contact

  • Airflow Control: directs air where needed

  • Mystic Light RGB: customizable lighting

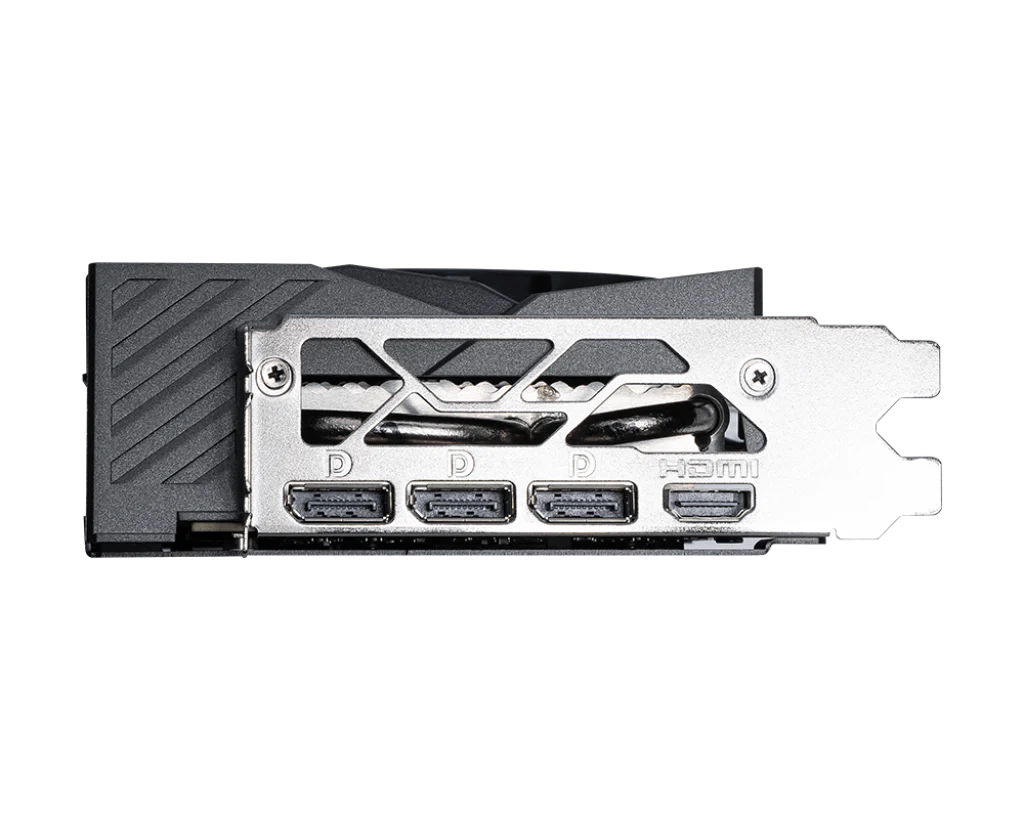

• Connectivity

  • 3× DisplayPort 2.1a

  • 1× HDMI 2.1b

  • Supports up to 8K @ 60Hz or 4K @ 240Hz with DSC

• Power & Build

  • TDP: ~180W

  • Recommended PSU: 600W

  • 1× 16‑pin PCIe 5.0 (12VHPWR) connector

  • PCIe 5.0 x16 (runs at x8)

📐 Specifications Summary

💡 Why It’s a Smart Choice

• ✅ Next‑gen Blackwell GPU = AI‑driven performance boost

• ✅ DLSS 4 + Ray Tracing = higher FPS with better visuals

• ✅ GDDR7 memory = faster bandwidth for modern games

• ✅ MSI GAMING OC cooling = quiet, efficient, RGB‑ready

• ✅ Future‑proof outputs = DisplayPort 2.1 + HDMI 2.1b
