GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard
HomeStore

GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard

GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard

Motherboard Specifications
Supported Processors LGA1851 socket: Support for IntelĀ® Coreā„¢ Ultra Processors
Chipset IntelĀ® Z890 Express Chipset
Socket LGA1851
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types
data rate (speed)
and number of DRAM modules
please refer to "Memory Support List" for more information.)
Ports 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x USB4Ā® USB Type-CĀ® port (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

(Note) Actual support may vary by CPU.
Form Factor ATX
M.2 Slots Yes
Expansion Slots CPU:
- 1 x PCI Express x16 slot
supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots
supporting PCIe 4.0 and running at x4 (PCIEX4_1
PCIEX4_2)
- 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x1 (PCIEX1)
$308.89
GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoardā€”
$308.89

More Images

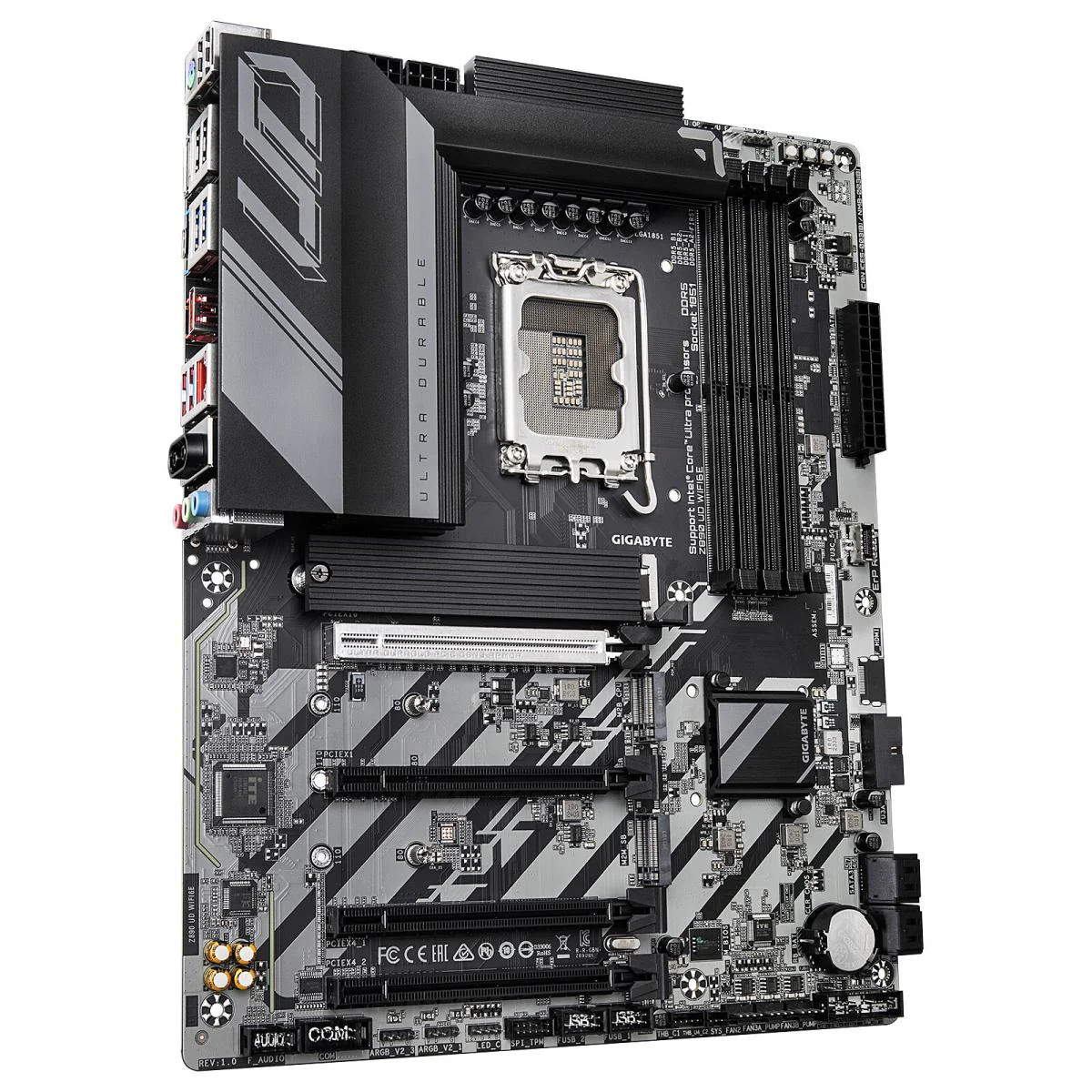

GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard - Image 2

GIGABYTE Z890 UD WIFI6E, Intel Core Ultra (Series 2), LGA 1851/DDR5/PCIe 5.0/3xM.2 - ATX Gaming MotherBoard

Motherboard Specifications
Supported Processors LGA1851 socket: Support for IntelĀ® Coreā„¢ Ultra Processors
Chipset IntelĀ® Z890 Express Chipset
Socket LGA1851
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types
data rate (speed)
and number of DRAM modules
please refer to "Memory Support List" for more information.)
Ports 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x USB4Ā® USB Type-CĀ® port (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

(Note) Actual support may vary by CPU.
Form Factor ATX
M.2 Slots Yes
Expansion Slots CPU:
- 1 x PCI Express x16 slot
supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots
supporting PCIe 4.0 and running at x4 (PCIEX4_1
PCIEX4_2)
- 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x1 (PCIEX1)

Product Information

Shipping & Returns

Description

Motherboard Specifications
Supported Processors LGA1851 socket: Support for IntelĀ® Coreā„¢ Ultra Processors
Chipset IntelĀ® Z890 Express Chipset
Socket LGA1851
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Support CUDIMM memory module
(The CPU and memory configuration may affect the supported memory types
data rate (speed)
and number of DRAM modules
please refer to "Memory Support List" for more information.)
Ports 4 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
1 x DisplayPort (Note)
4 x USB 3.2 Gen 1 ports
1 x USB4Ā® USB Type-CĀ® port (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
1 x RJ-45 port
2 x SMA antenna connectors (2T2R)
3 x audio jacks

(Note) Actual support may vary by CPU.
Form Factor ATX
M.2 Slots Yes
Expansion Slots CPU:
- 1 x PCI Express x16 slot
supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots
supporting PCIe 4.0 and running at x4 (PCIEX4_1
PCIEX4_2)
- 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x1 (PCIEX1)
