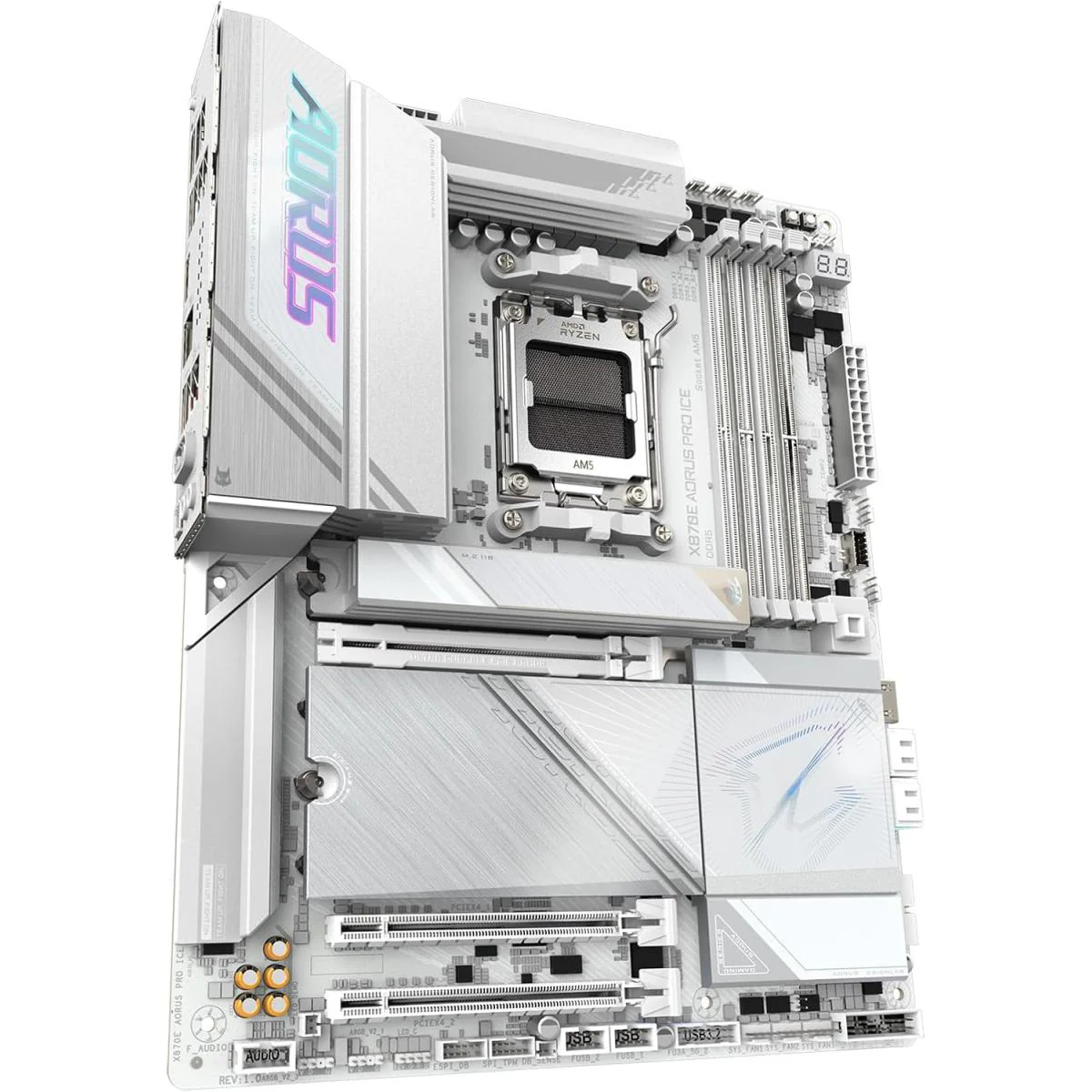

GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard
HomeStore

GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard

GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard

Motherboard Specifications
Supported Processors Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD X870
Socket AMD AM5
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Ports 1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
4 x USB 3.2 Gen 1 ports
2 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Form Factor ATX
M.2 Slots Yes
Expansion Slots 1x PCI Express x16 slot (PCIEX16)
integrated in the CPU:
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.


When theM2B_CPU orM2C_CPU connector is populated
the PCIEX16 slot operates at up to x8 mode.
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.)

Chipset:
- 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot
supporting PCIe 3.0 and running at x4 (PCIEX4_2)
$478.14
GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard—
$478.14

More Images

GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard - Image 2

GIGABYTE X870E AORUS PRO ICE (Wi-Fi 7) AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/4xM.2 - ATX Gaming Motherboard

Motherboard Specifications
Supported Processors Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD X870
Socket AMD AM5
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Ports 1 x Q-Flash Plus button
2 x USB 2.0/1.1 ports
1 x HDMI port (Note)
4 x USB 3.2 Gen 1 ports
2 x USB4® USB Type-C® port (DisplayPort (Note))
3 x USB 3.2 Gen 2 Type-A ports (red)
1 x RJ-45 port
2 x antenna connectors (2T2R)
1 x optical S/PDIF Out connector
2 x audio jacks
Form Factor ATX
M.2 Slots Yes
Expansion Slots 1x PCI Express x16 slot (PCIEX16)
integrated in the CPU:
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode
* The M2B_CPU and M2C_CPU connectors share bandwidth with the PCIEX16 slot.


When theM2B_CPU orM2C_CPU connector is populated
the PCIEX16 slot operates at up to x8 mode.
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
(The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.)

Chipset:
- 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot
supporting PCIe 3.0 and running at x4 (PCIEX4_2)
