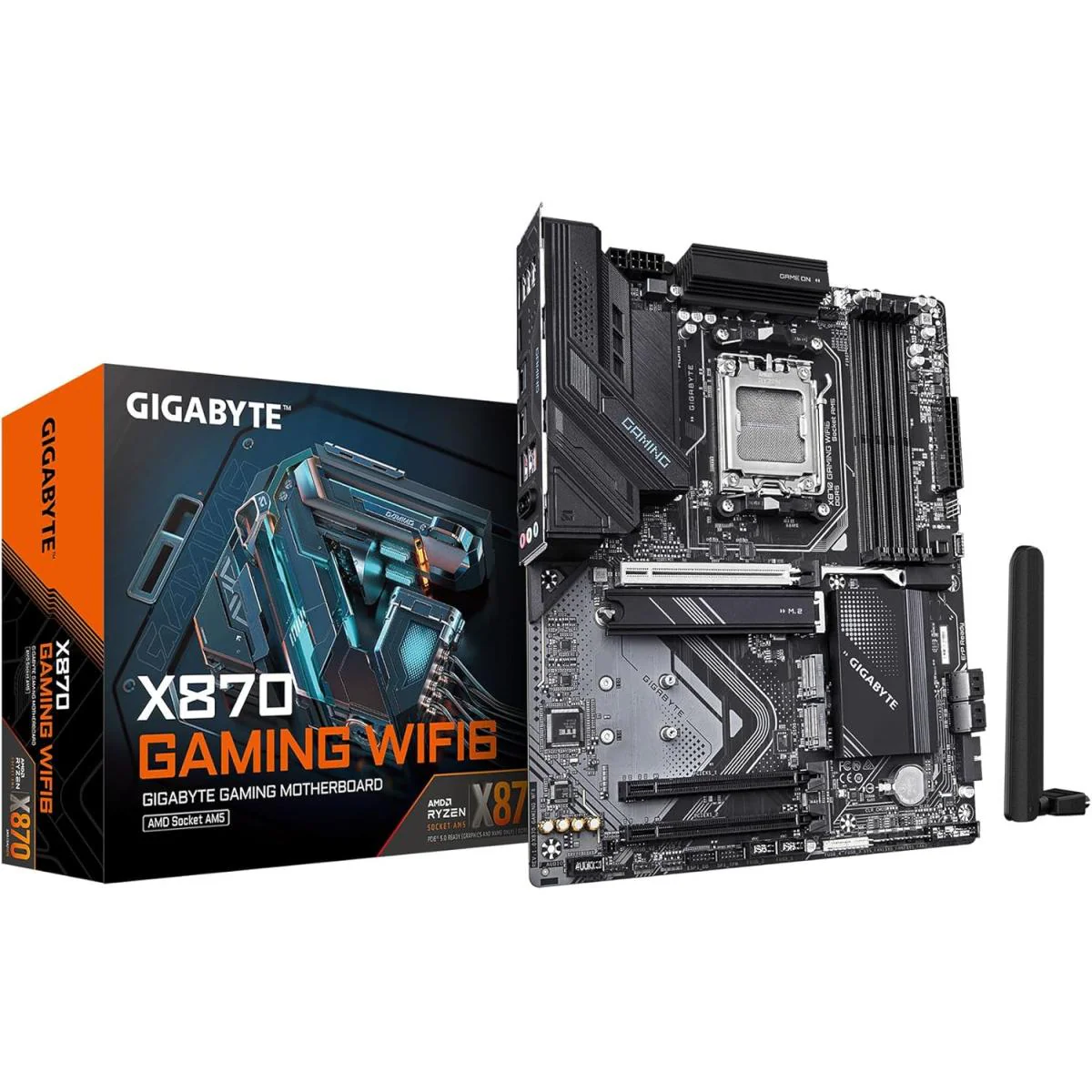

GIGABYTE X870 GAMING WIFI6 AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/3xM.2 - ATX Gaming Motherboard
HomeStore

GIGABYTE X870 GAMING WIFI6 AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/3xM.2 - ATX Gaming Motherboard

GIGABYTE X870 GAMING WIFI6 AMD RYZEN 7000 8000 9000 Series AM5/DDR5/PCIe 5.0/3xM.2 - ATX Gaming Motherboard

Motherboard Specifications
Supported Processors Supports AMD Ryzenâ„¢ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Chipset AMD X870
Socket AMD AM5
Memory Type DDR5
Memory Slots 4
Maximum Memory 256GB
Memory Bus Speed Support for DDR5 8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPOâ„¢) and Extreme Memory Profile (XMP) memory modules
Ports 1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port (Note)
2 x USB4® USB Type-C® ports (DisplayPort (Note))
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

(Note) Actual support may vary by CPU.
Form Factor ATX
M.2 Slots Yes
Expansion Slots 1 x PCI Express x16 slot (PCIEX16)
integrated in the CPU:
AMD Ryzenâ„¢ 9000/7000 Series Processors support PCIe 5.0 x16 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzenâ„¢ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed
be sure to install it in the PCIEX16 slot.


Chipset:
- 2 x PCI Express x16 slots
supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
$322.99
