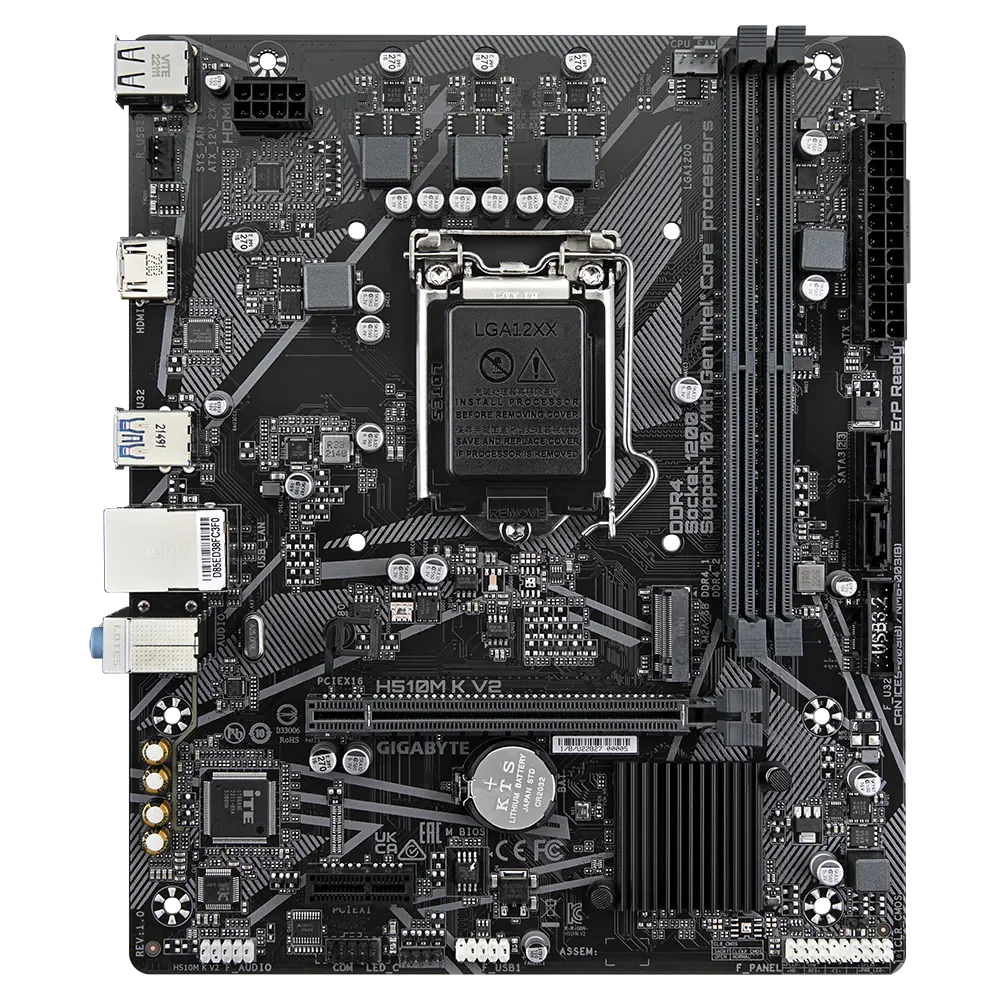

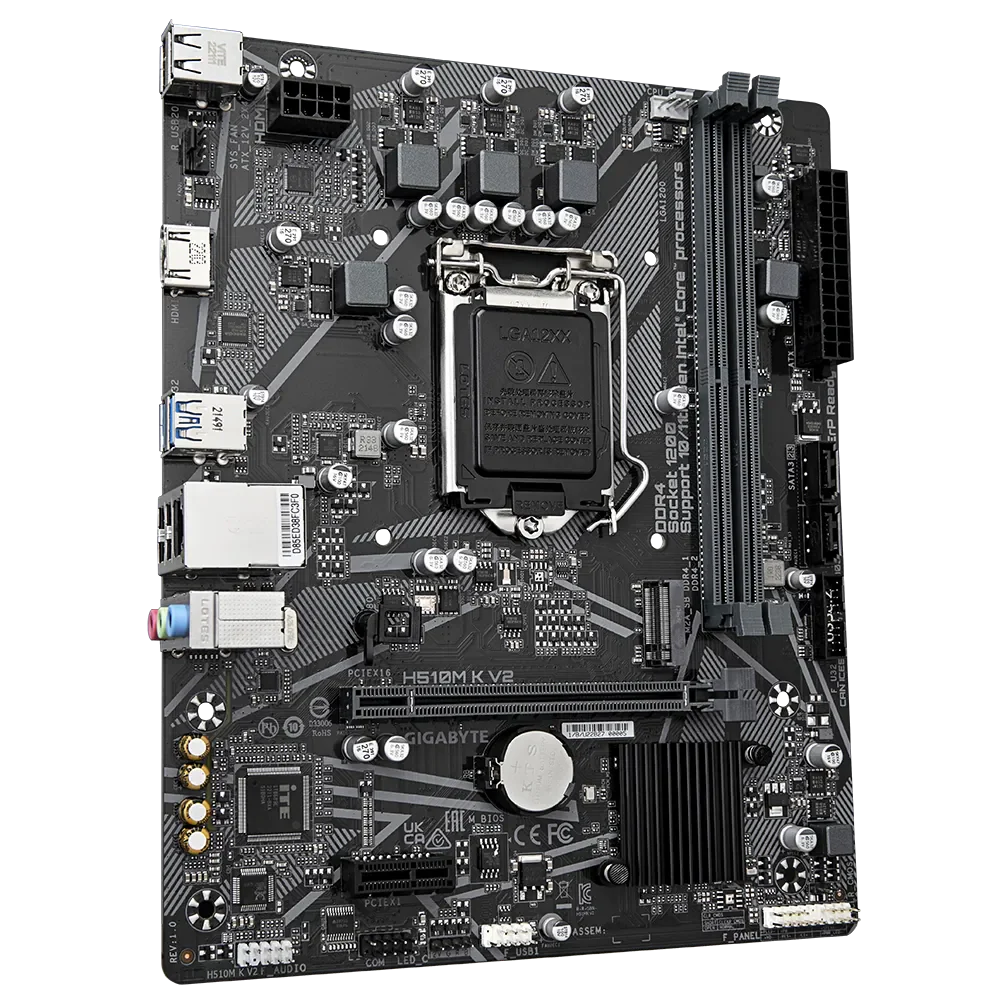

Gigabyte H510M K V2 10th & 11th GEN CPUs
🖥️ Motherboard Overview
-
Chipset: Intel® H510
-
Form Factor: Micro‑ATX
-
Memory: Dual‑channel DDR4, up to 64GB (2 DIMMs)
-
Expansion: 1× PCIe 4.0 x16 slot (for GPUs), 1× PCIe 3.0 x1
-
Storage: 1× M.2 (PCIe Gen3 x4 / SATA), 4× SATA 6Gb/s
-

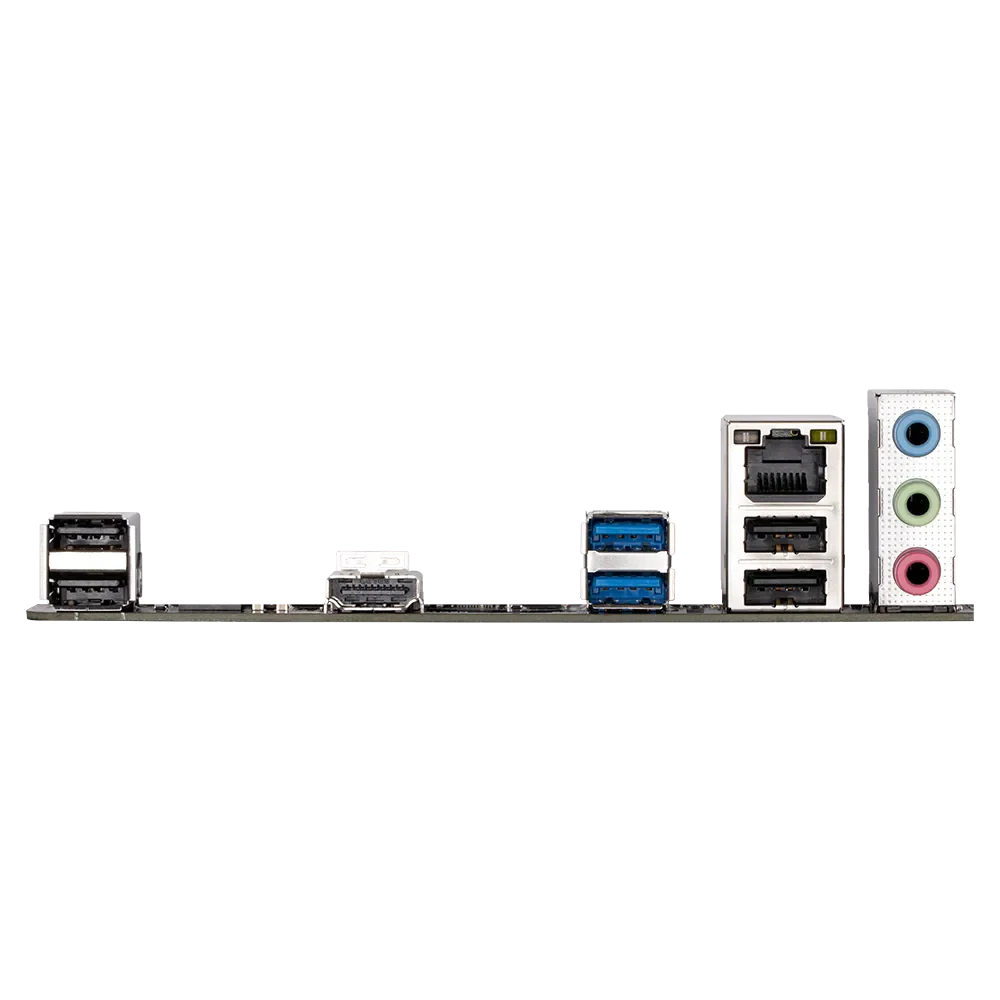

Connectivity: GbE LAN, USB 3.2 Gen1, HDMI, D‑Sub
-
Audio: 8‑channel HD audio with high‑quality capacitors
-
Cooling: Smart Fan 5 with multiple sensors and hybrid fan headers
⚡ CPU Compatibility
The Gigabyte H510M K V2 supports both 10th Gen and 11th Gen Intel Core processors (LGA1200 socket). The 11th Gen CPUs you can use:
| Series | Supported CPUs |
|---|---|
| Core i9 | i9‑11900K, i9‑11900KF, i9‑11900, i9‑11900F, i9‑11900T |
| Core i7 | i7‑11700K, i7‑11700KF, i7‑11700, i7‑11700F, i7‑11700T |
| Core i5 | i5‑11600K, i5‑11600KF, i5‑11600, i5‑11600T, i5‑11500, i5‑11400, i5‑11400F, i5‑11400T |
| Core i3 | i3‑11100, i3‑11100T, i3‑11100B, i3‑11100TE |
| Pentium Gold | G6605, G6505, G6405 (11th Gen refresh) |
| Celeron | G5905, G5905T (11th Gen refresh) |
👉 Note: Some lower‑end Pentium/Celeron SKUs are technically 10th Gen refreshes but still supported on this board.
🔧 Important Notes
-
To use 11th Gen CPUs, make sure your BIOS is updated to the latest version from Gigabyte’s support page.
-
PCIe 4.0 support (for GPUs and NVMe SSDs) is only enabled when using an 11th Gen Core i5/i7/i9 CPU.
-
With 10th Gen CPUs, the PCIe slot runs at Gen3 speeds.
