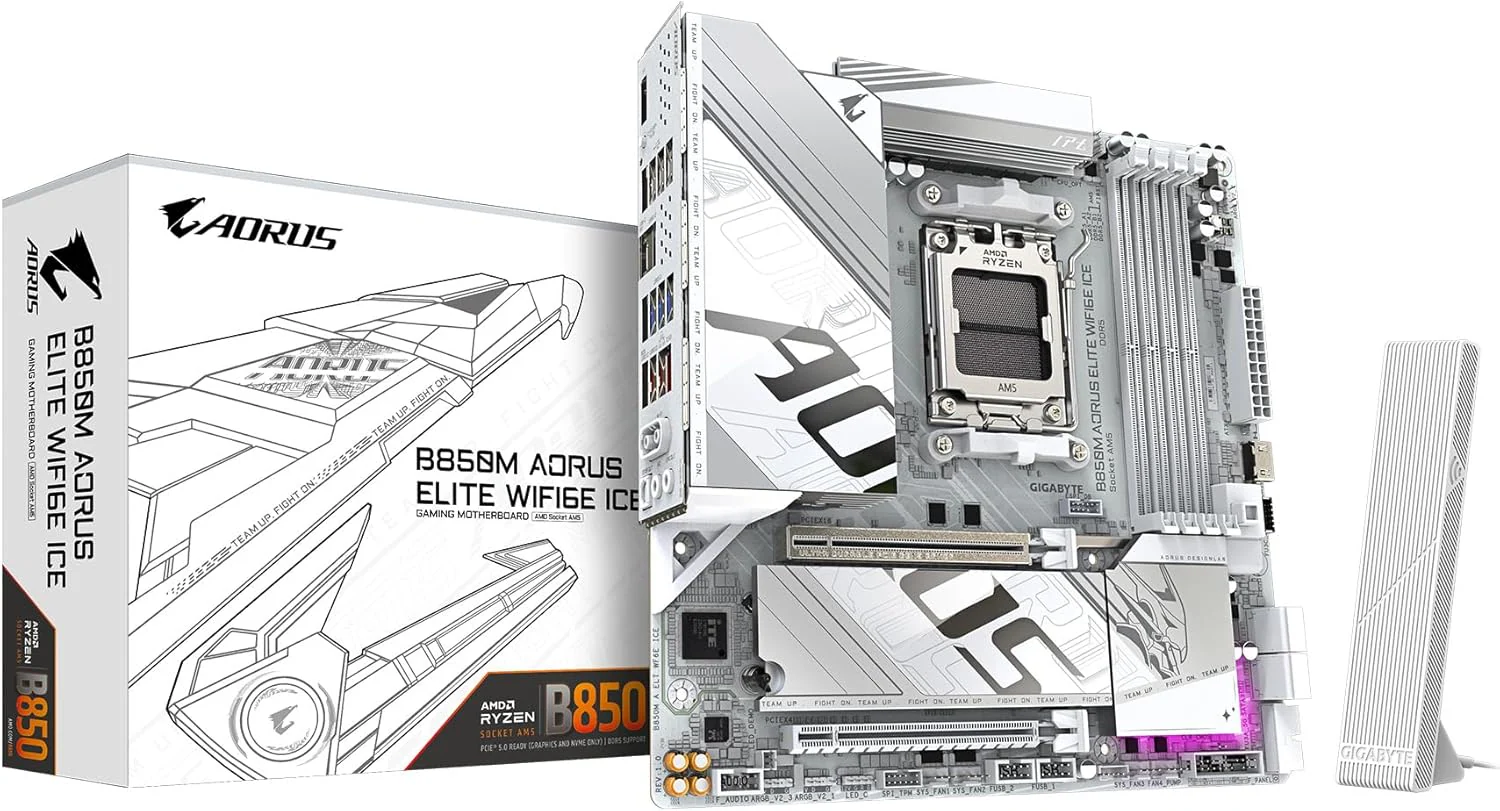

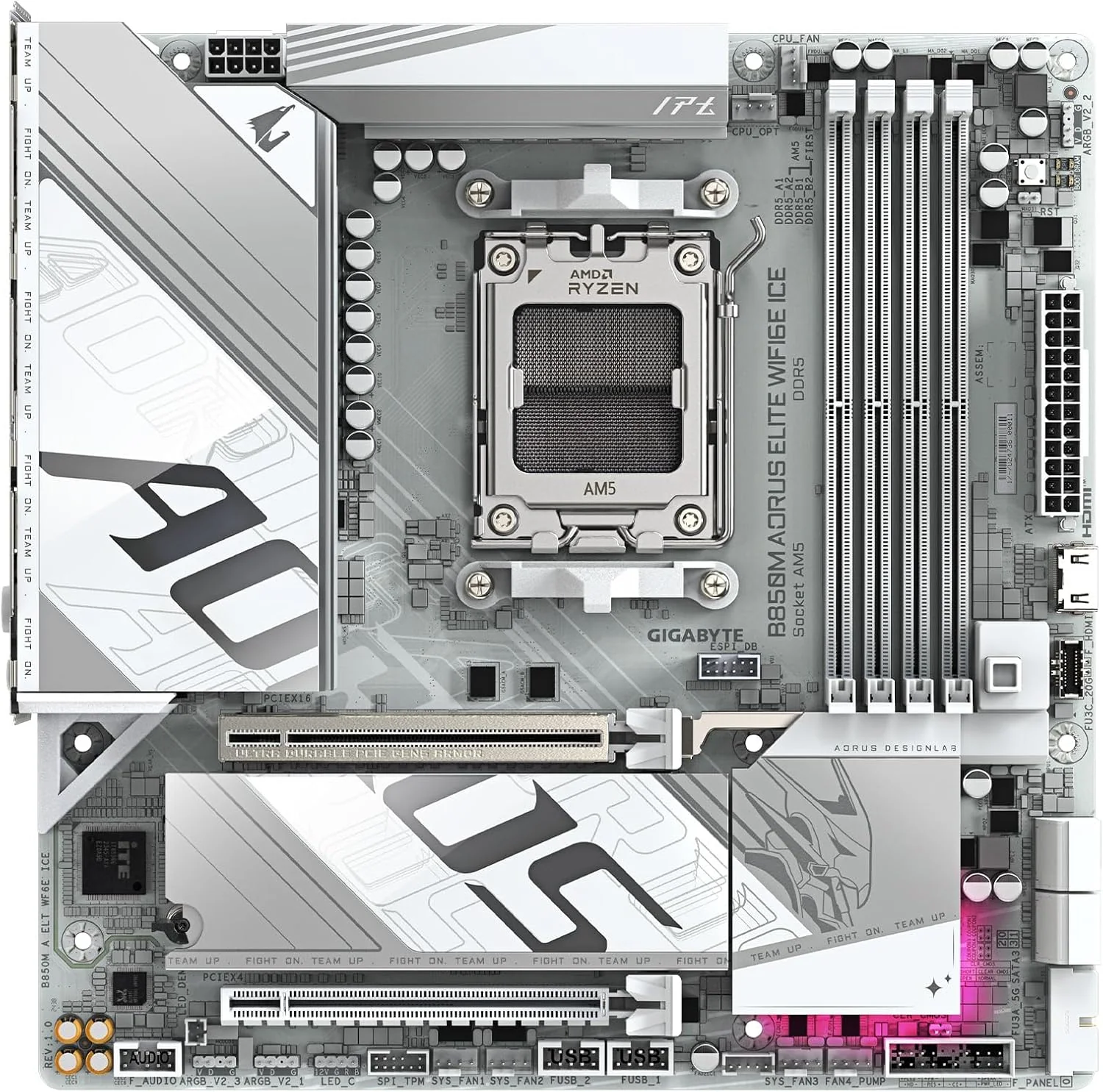

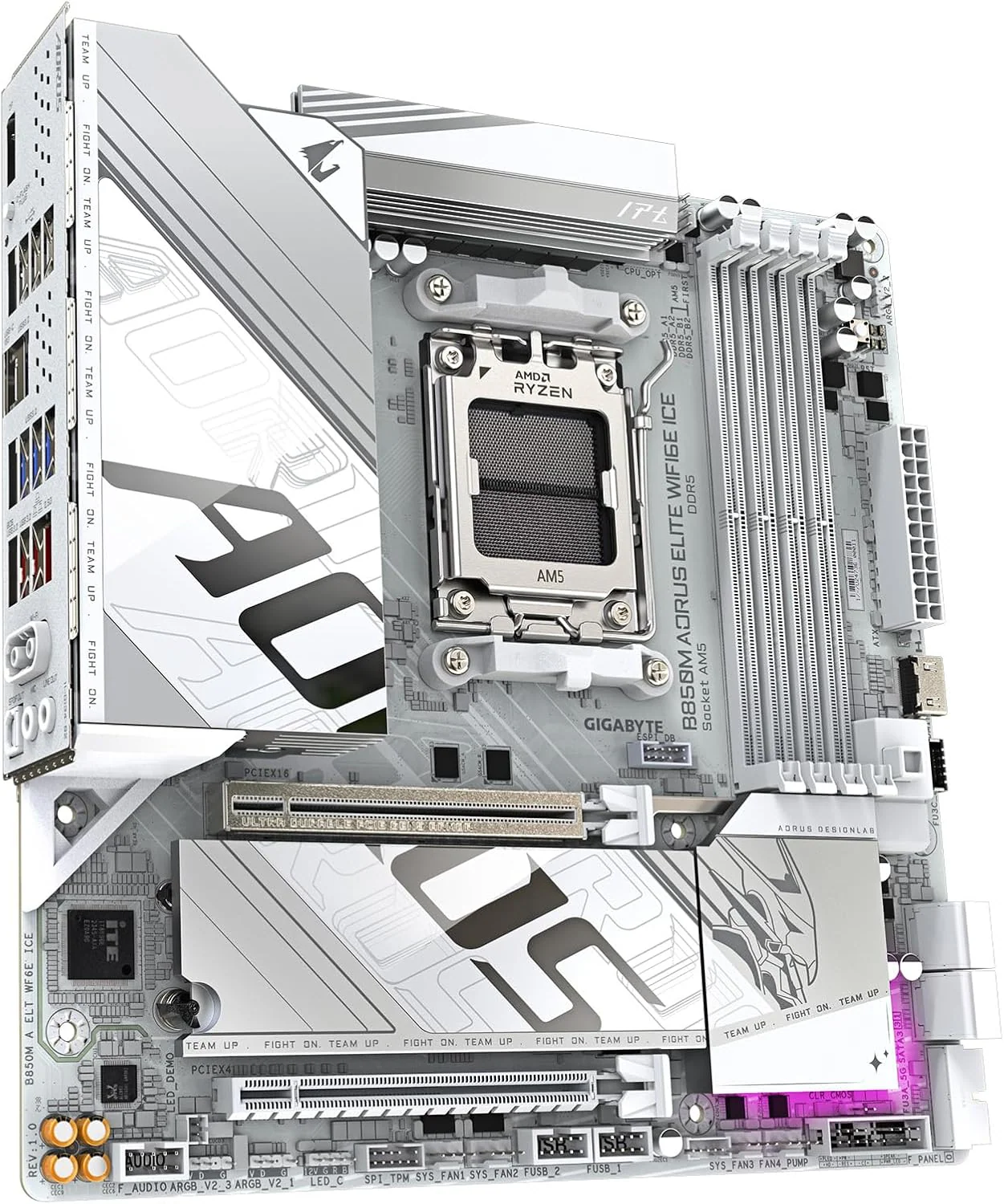

Gigabyte AMD B850M AORUS ELITE WiFi‑6E ICE Micro‑ATX Motherboard

Model: B850M AORUS ELITE WiFi‑6E ICE
Type: Micro‑ATX Motherboard
Socket: AMD AM5
Chipset: AMD B850
Colour: White / ICE Edition

Key Features

• Supports AMD Ryzen 9000 / 8000 / 7000 series processors
• 4× DDR5 DIMM slots, dual channel, up to 256GB
• Memory speeds up to 8200MT/s (OC), supports AMD EXPO & Intel XMP
• PCIe 5.0 x16 slot for next‑gen graphics cards
• Dual M.2 slots (PCIe 5.0 + PCIe 4.0) with EZ‑Latch screwless design
• WiFi‑6E + Bluetooth 5.3 + Realtek 2.5GbE LAN

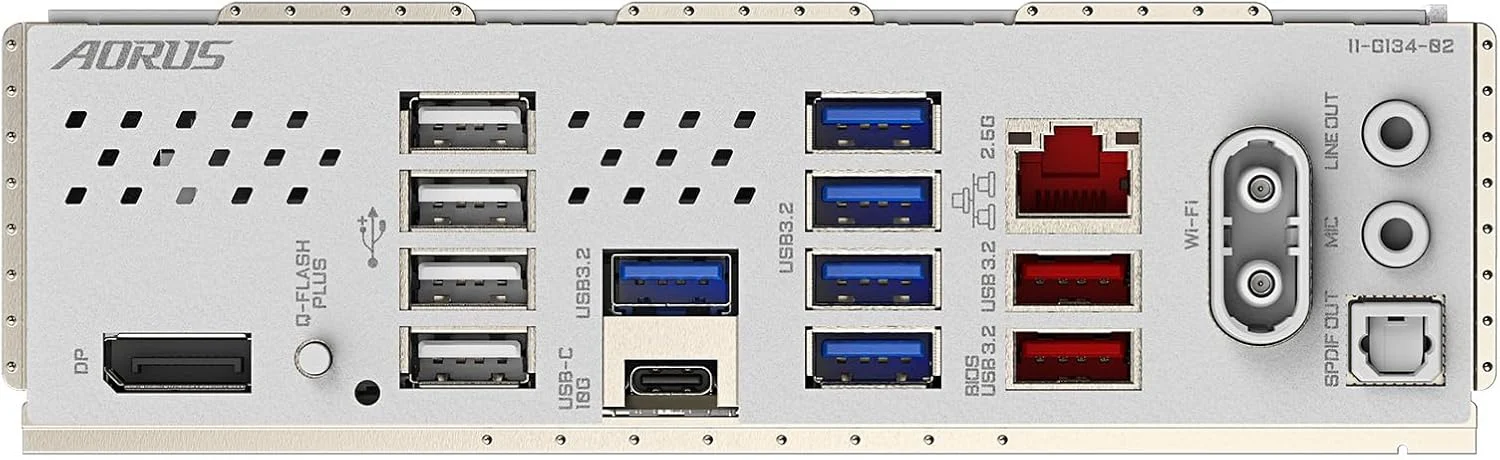

• HDMI 2.1 and DisplayPort 1.4 outputs for multi‑display setups
• 10+2+2 phase digital VRM with 6‑layer PCB for stable power delivery
• Stylish ICE white design with reinforced heatsinks

Specifications

Attribute	Details
Brand	Gigabyte
Model	B850M AORUS ELITE WiFi‑6E ICE
Socket	AM5
Chipset	AMD B850
Form Factor	Micro‑ATX
Memory	4× DDR5 DIMM, up to 256GB, 8200MT/s (OC)
Graphics Outputs	HDMI 2.1, 2× DisplayPort 1.4
Networking	WiFi‑6E, Bluetooth 5.3, Realtek 2.5GbE LAN
Audio	Realtek HD Audio, 7.1 channel
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 3.0 x4
Storage	2× M.2 (PCIe 5.0 + 4.0), 4× SATA 6Gb/s
Power Design	10+2+2 phases VRM, 6‑layer PCB
Colour	White / ICE Edition

Benefits

• Future‑proof platform — ready for latest Ryzen CPUs and DDR5 memory
• High‑speed connectivity — PCIe 5.0 slots for GPUs and NVMe SSDs
• Strong networking — WiFi‑6E and 2.5GbE LAN for smooth online gaming
• DIY friendly — EZ‑Latch quick release for PCIe/M.2 slots
• Stylish build — ICE white design enhances modern gaming rigs
