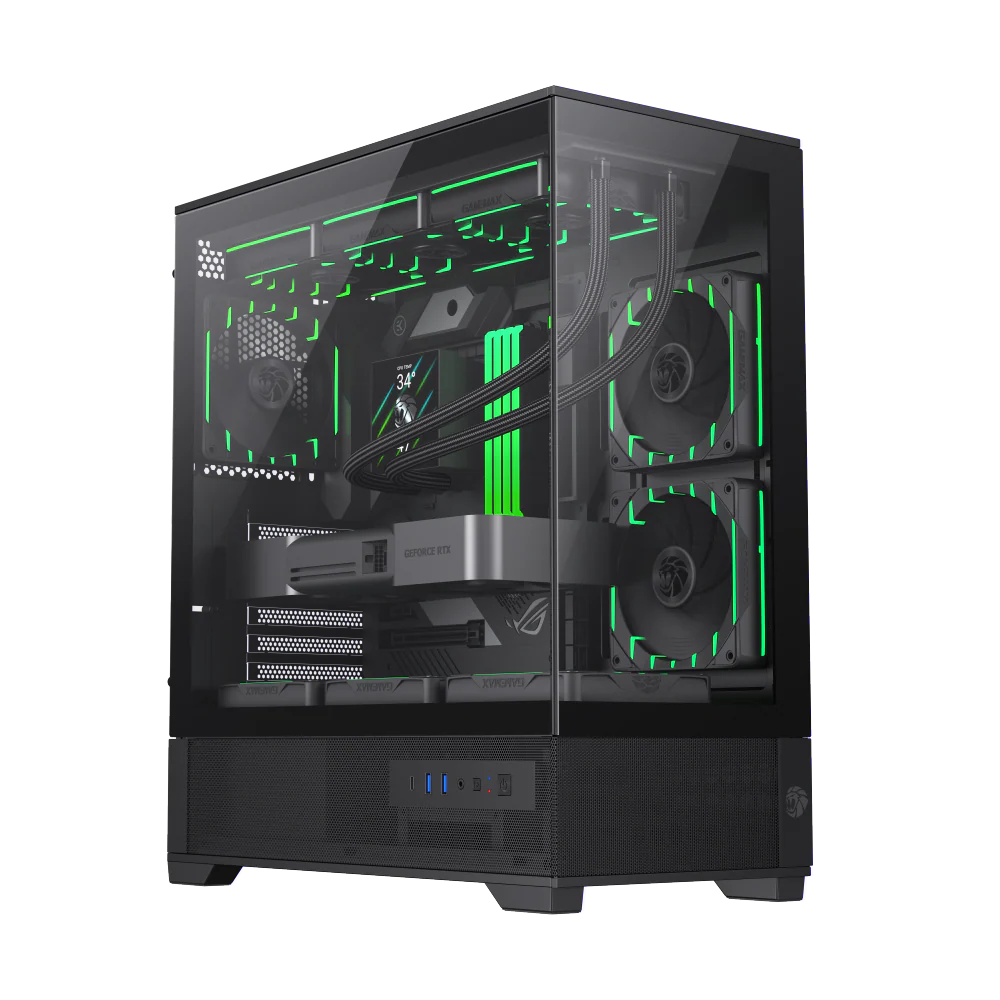

GAMEMAX VISTA 2 AB (BLACK) ATX GAMING CASE

Form Factor:

Midi Tower

Chassis:

SPCC :0.6mm

PSU Form Factor

Bottom/ATX

M/B Form Factor:

E-ATX、ATX、M-ATX、ITX

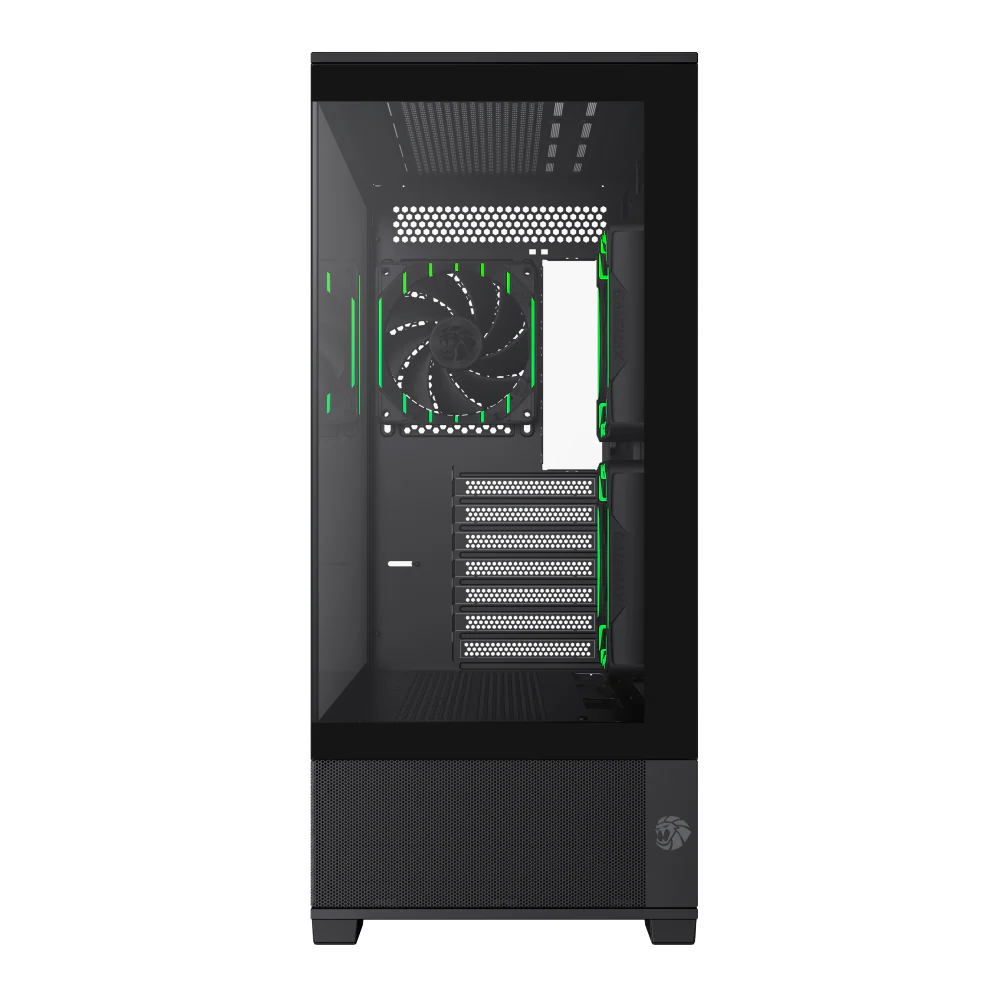

Front Panel:

Tempered Glass,Mesh

Top Panel:

Metal cover

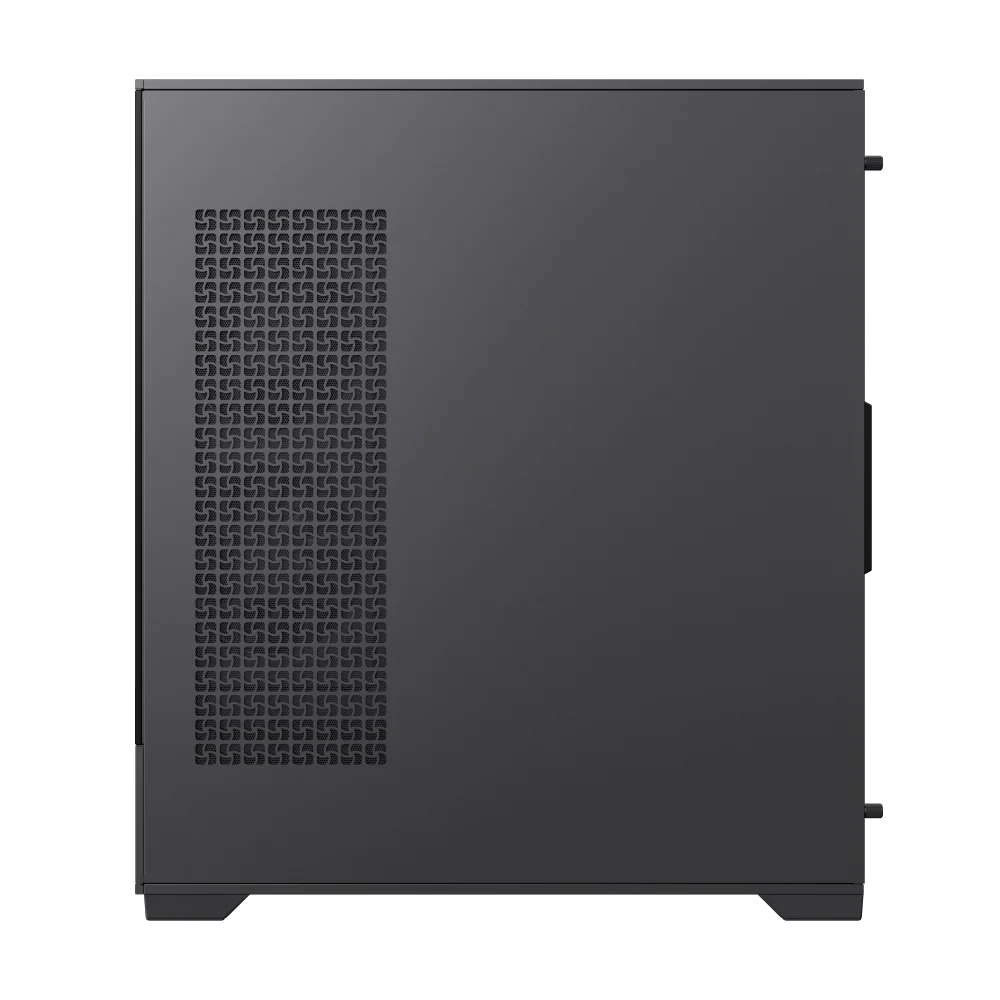

Side Panel:

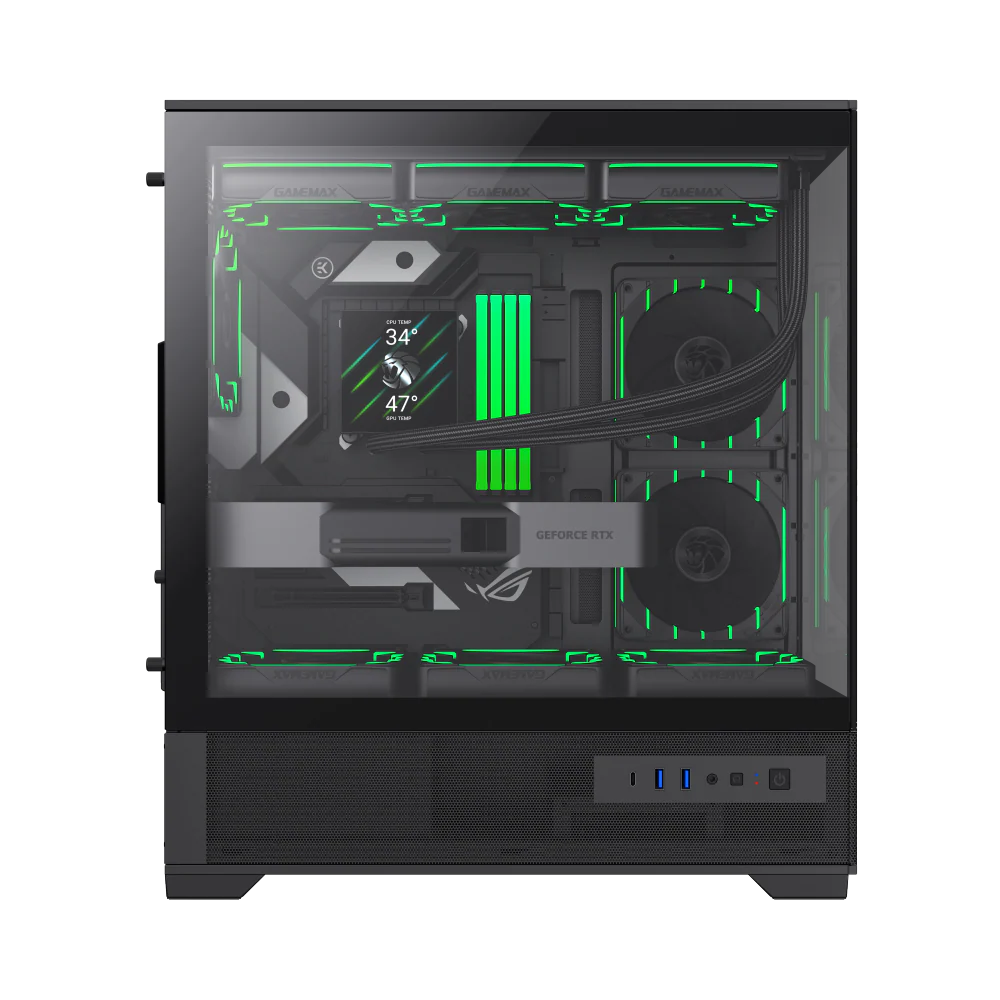

Left:

Tempered Glass

Right:

Metal cover

External Drive Bay(s):

5.25”(ODD):

*0

3.5”:

*0

Internal Drive Bay(s):

3.5" (HDD):

2

2.5" (SSD):

2

2*3.5"HDD+1*2.5"SSD or 1*3.5"HDD+2*2.5"SSD

I/O:

Buttons:

*2(POWER,,LED SW)

USB 2.0 Port(s):

*0

USB 3.2 Type-A Port(s):

*2(Gen1)

USB 3.2 Type C Port(s):

*1(Gen2)

Audio Support:

*1(Combo AUDIO)

Card Reader (Support):

*0

P-Lock：

*0

RGB Controller：

*1(V5.0 PWM ARGB HUB)

Controller Max Fans:

*6

RGB Controller max. LED strips：

*6

Remote (IR or RF)：

*1

Cooling Fan Support:

Front:

*0

Top:

3x120mm ,2x140mm (Fan optional)

Rear:

1x120mm (Tornado T12 ARGB)

M/B Cover：

2x120mm(Tornado T12 ARGB-R)

PSU Cover：

3x120mm (Fan optional)

Water Cooling Support

(Radiator Size):

Front:

*0

Top:

120mm, 140mm,240mm,280mm,360mm

Rear:

120mm

M/B Cover：

Dust Cover:

Dust mesh on the top and bottom

Slots:

*7

Carton & Logo:

GAMEMAX

Dimensions:

Chassis:

(L)415*(W)210*(H)470mm

Full Case (Inc Fascia):

(L)433*(W)210*(H)485mm

Carton:

(L)552*(W)282*(H)496mm

Net Weight(kg):

7.0

Gross Weight(kg):

8.3

VGA Support:

up to 410mm

Vertical Graphics Support

No

CPU Cooler Height:

up to 165mm

SPS Length:

up to 265mm

Cable Management Depth:

25mm
