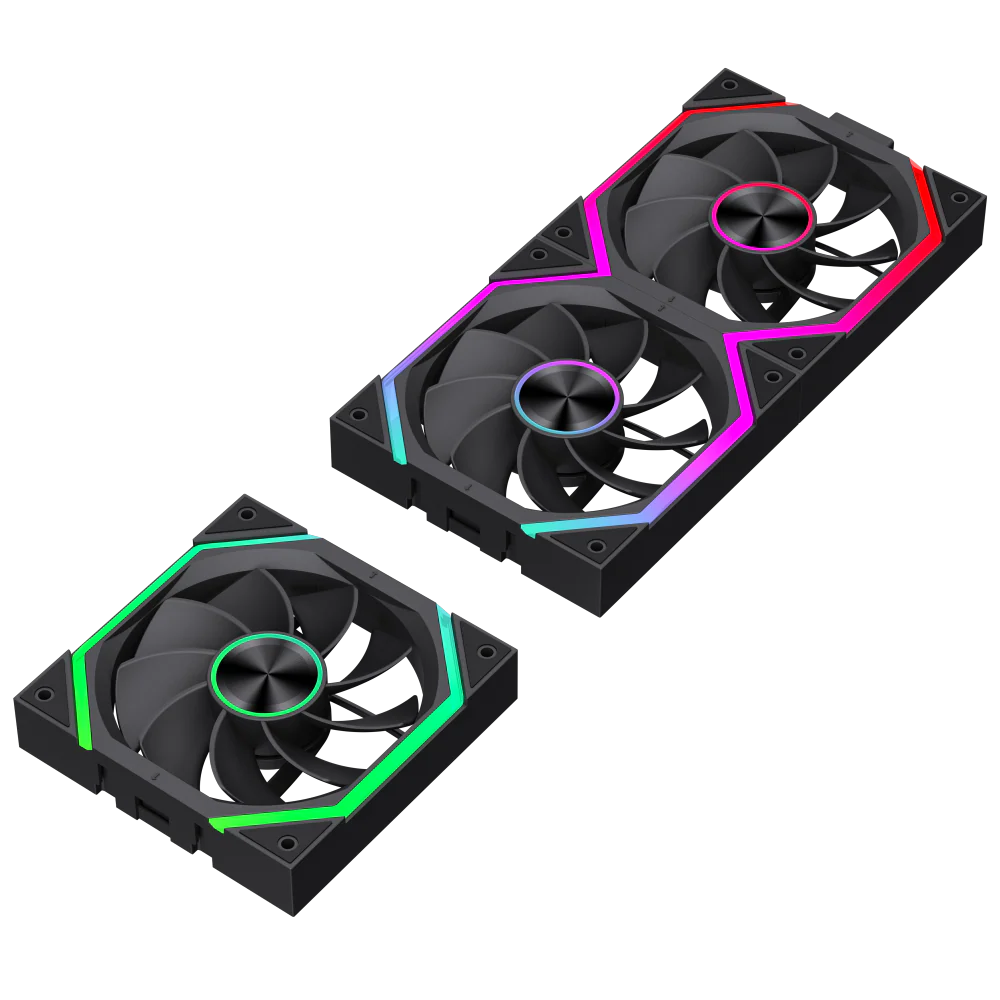

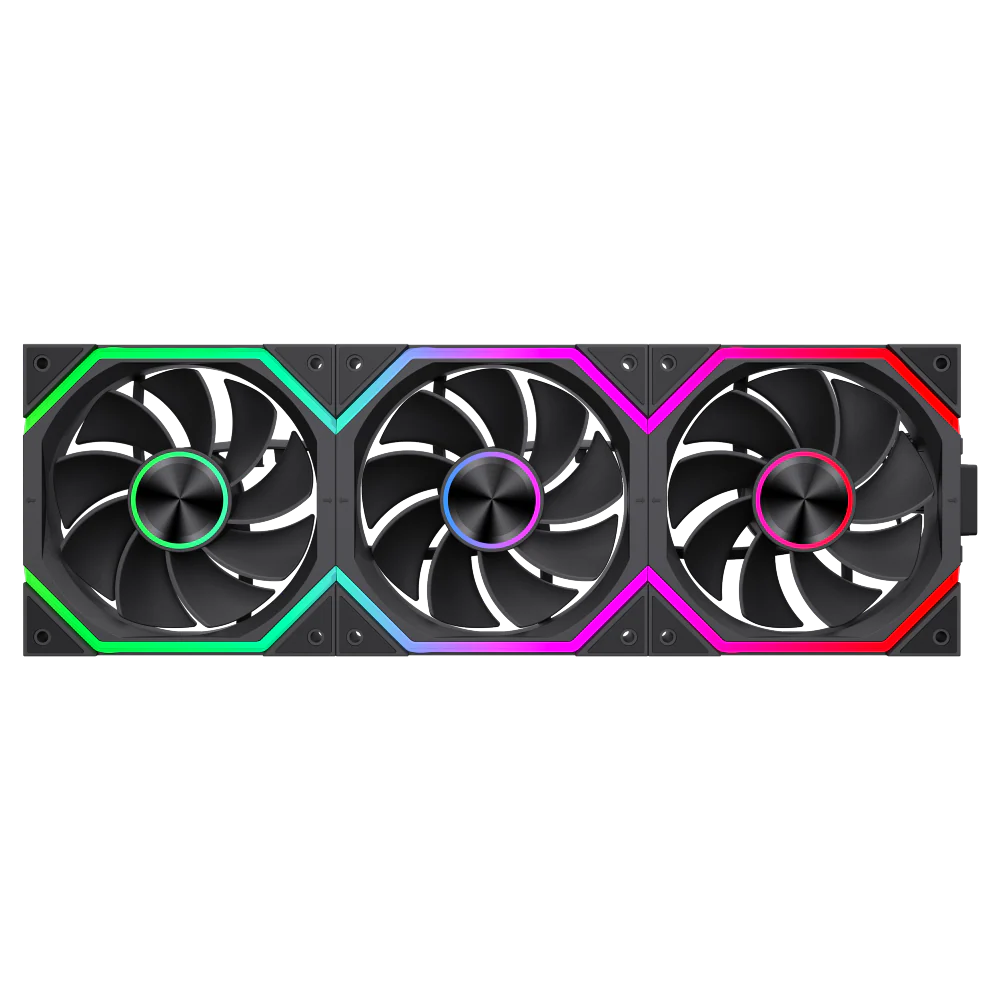

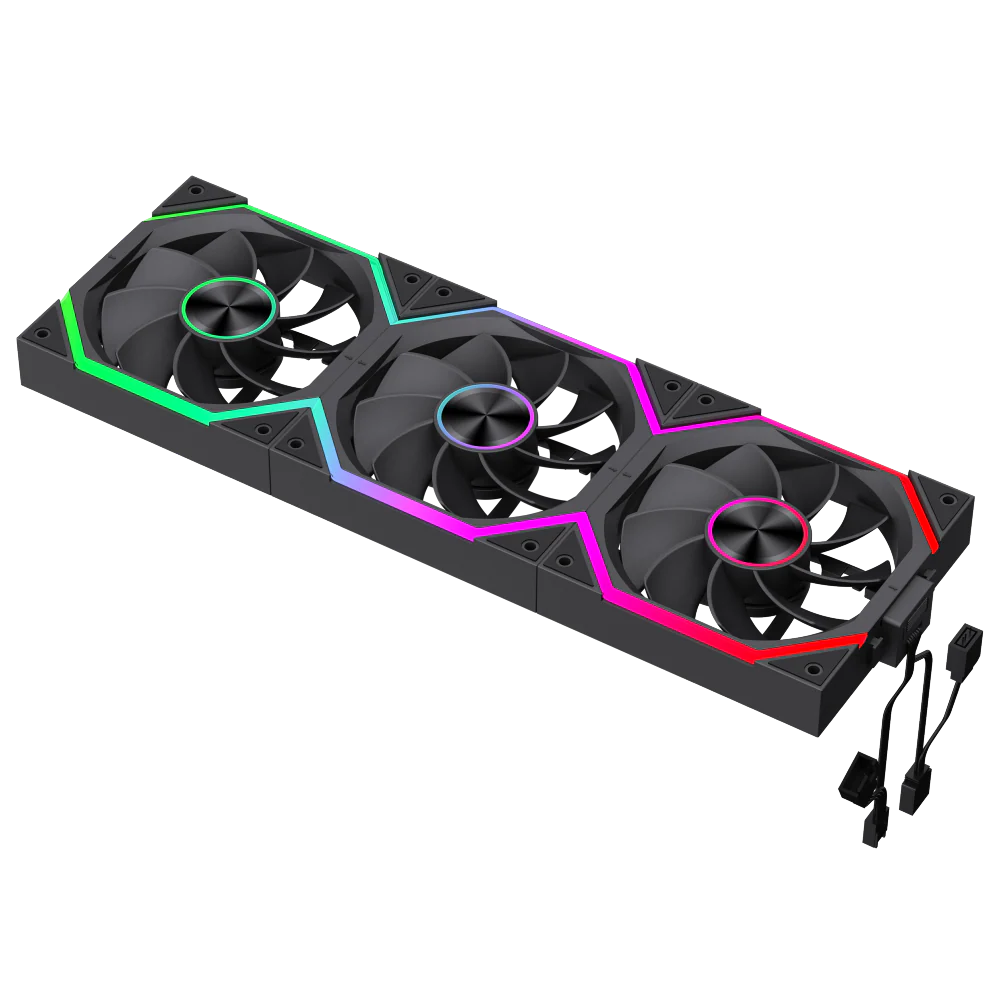

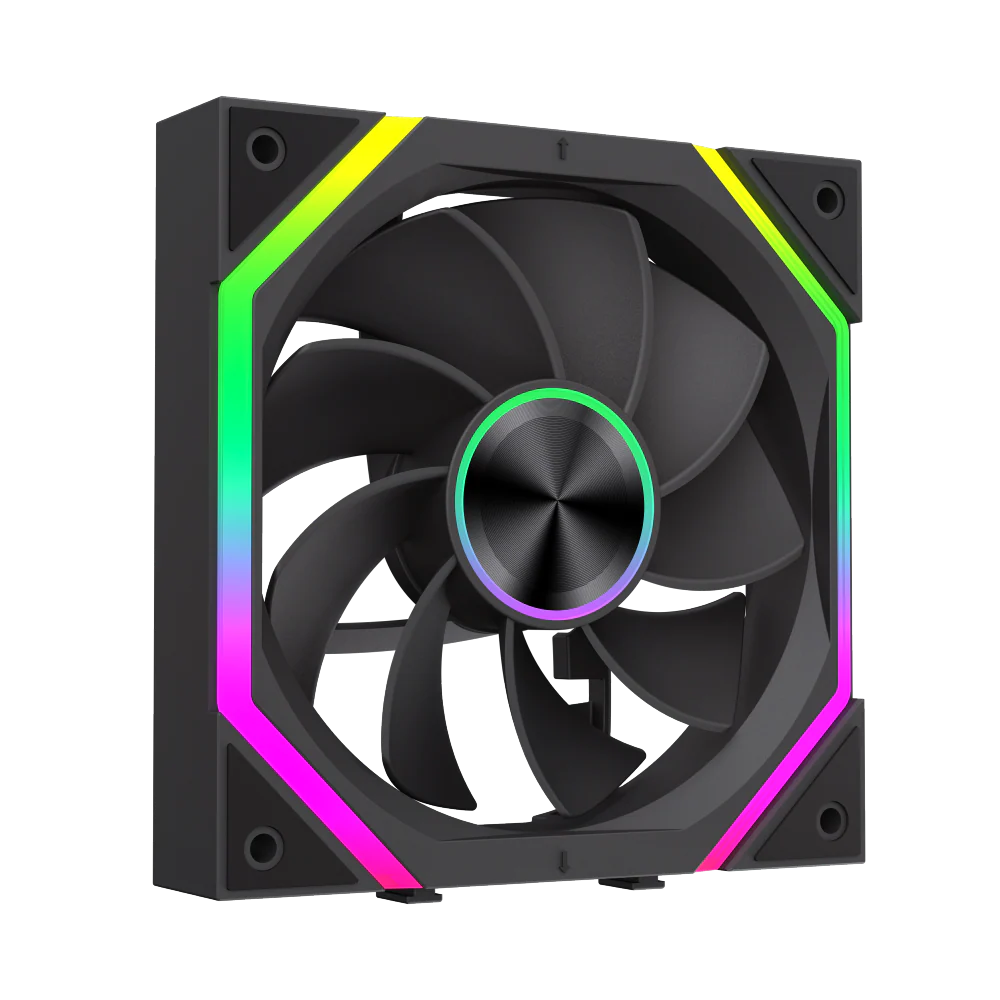

GAMEMAX FN12A-N2-WL-R Reversible Blade Cooling Fan

Colour

Black

What's In The Box

Fan*1,Screws*4，Long screw*4

Unit (Product) Dimensions (mm)

120mm x 120mm x 25mm (W x H x D)

Bearing Type

Hydraulic Bearing

Fan Frame /Colour

Black

Fan Blades / Colour

9 Reverse Fan Blade / Black / Axial aluminum CD pattern

LED Qty / Type

Axle center 8 PCS, Outer ring 16PCS

Rated Voltage

12V

Rated Current (max.)

0.18A

Rated Input Power

2.16W

Test Voltage

12V

Start Voltag

5V

Fan Speed

800~2000 rpm ± 10%

Max. Air Flow

58.6 CFM

Max. Static Air Pressure

1.98mm - H2O

Noise Level (max.)

30.6 db(A)

Cable Length

4pin(M/F) PWM Power / 3pin Aura head(M/F) 500/500mm

Connectors

3pin AURA head(M/F) & 4pin  PWM Power(M/F)

M.T.B.F

30,000 hrs

Accessories

Screws1*12，Screws2*12，FAN*3

Package Contents

Gift Box

Unit Packaging Dimensions

L393*W131*H32
