Deepcool Gamer Storm PN1000D 1000W 80+ Gold
Reliable Power for Next-Gen Builds – DeepCool PN1000D 1000W 80+ Gold
The DeepCool PN1000D is a high-performance, non-modular ATX 3.1 power supply designed to meet the demands of modern gaming and workstation PCs. With 80 PLUS Gold and Cybenetics Gold certifications, a robust internal architecture, and full support for PCIe 5.1 and 12V-2×6 connectors, it delivers stable, efficient power for today’s most power-hungry GPUs and CPUs.
Key Features
-
1000W Output with 80+ Gold Efficiency: Up to 90% efficiency under typical loads for reduced heat and energy waste.
-
ATX 3.1 & PCIe 5.1 Ready: Fully compliant with the latest standards, including native 12V-2×6 support for up to 600W GPU power.
-

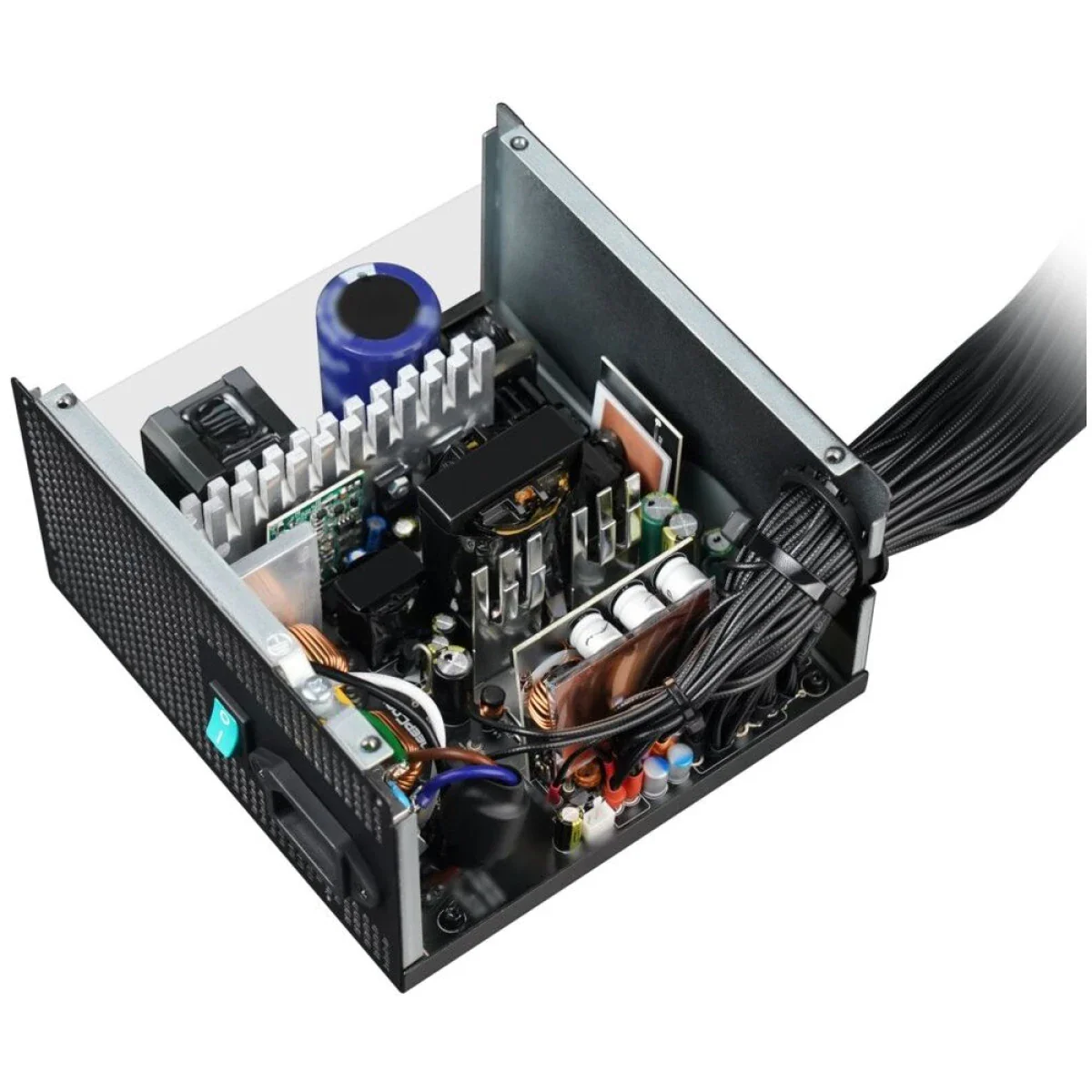

Premium Internal Design: Active PFC, full-bridge SRC LLC, and DC-to-DC topology ensure clean, stable voltage.
-

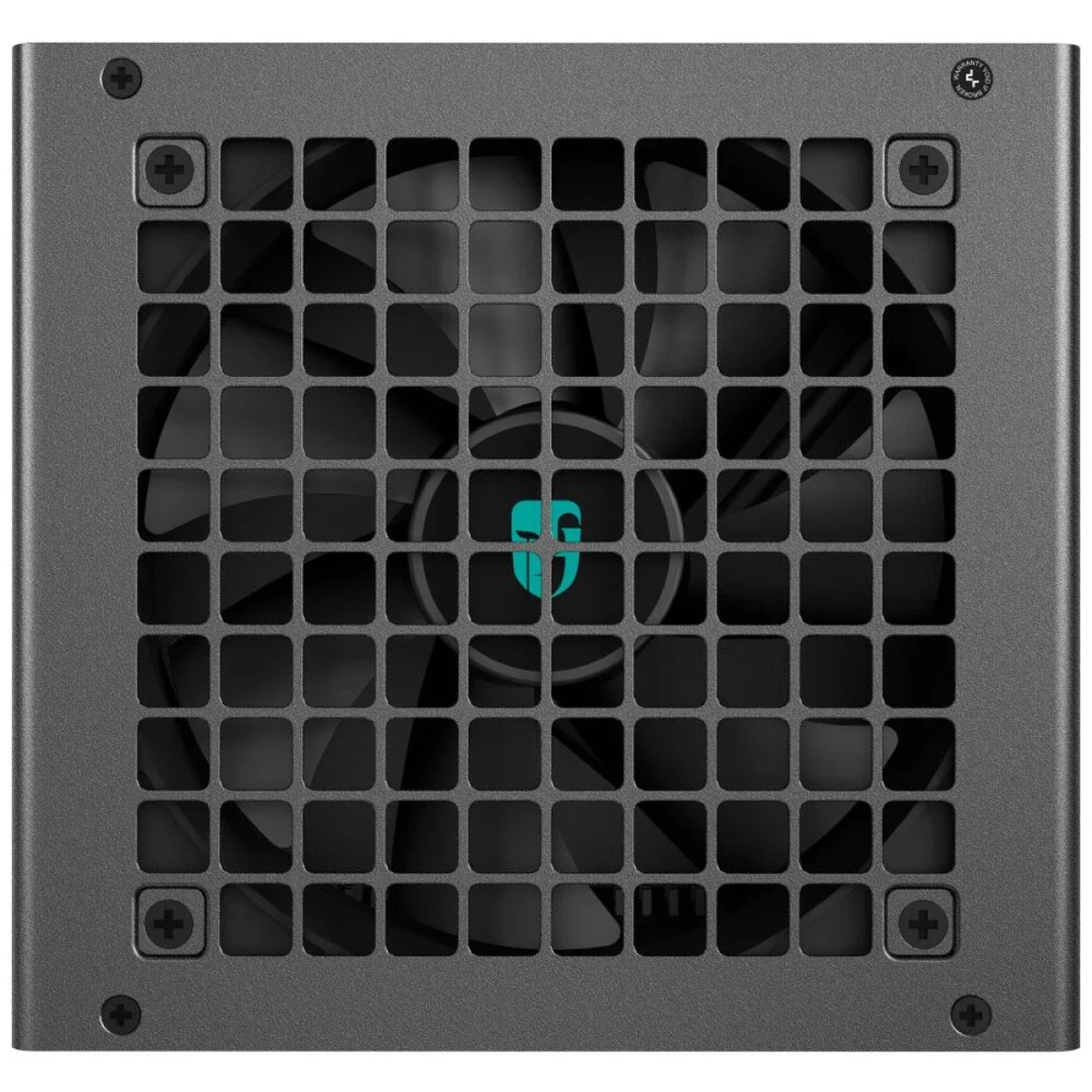

Hydro Bearing 120mm Fan: Dynamically adjusts speed for quiet, efficient cooling.
-
Comprehensive Protection Suite: Includes OVP, OPP, SCP, OTP, OCP, UVP, SIP, and NLO safeguards.
-
Durable Build: High-grade electrolytic capacitors and 16AWG sleeved cables for long-term reliability.
-
10-Year Warranty: Backed by DeepCool’s confidence in quality and longevity.
Specifications
| Feature | Details |
|---|---|
| Power Output | 1000W |
| Efficiency Certification | 80 PLUS Gold / Cybenetics Gold |
| Form Factor | ATX12V V3.1 |
| Topology | Active PFC + Full-Bridge SRC LLC + DC-to-DC |
| Fan Type | 120mm Hydro Bearing (Auto RPM Control) |
| Cable Type | Non-Modular (Sleeved) |
| Main Power Connector | 20+4 Pin ×1 |
| CPU Connectors | 4+4 Pin ×2 |
| PCIe Connectors | 6+2 Pin ×4 + 12V-2×6 (16 Pin) ×1 |
| SATA / Peripheral | SATA ×4 + Molex ×4 |
| Hold-Up Time | ≥16ms @ 80% Load |
| Operating Temp | 0°C to 40°C |
| MTBF | 100,000 Hours |
| Dimensions | 150 × 140 × 86 mm |
| Warranty | 10 Years |
| Color | Black |
Why Choose the DeepCool PN1000D?
-
Future-Proof Power: Ready for next-gen GPUs and CPUs with PCIe 5.1 and ATX 3.1 support.
-
Quiet & Efficient: Smart fan control and high efficiency keep your system cool and quiet.
-
Built to Last: Premium components and a decade-long warranty ensure peace of mind.
