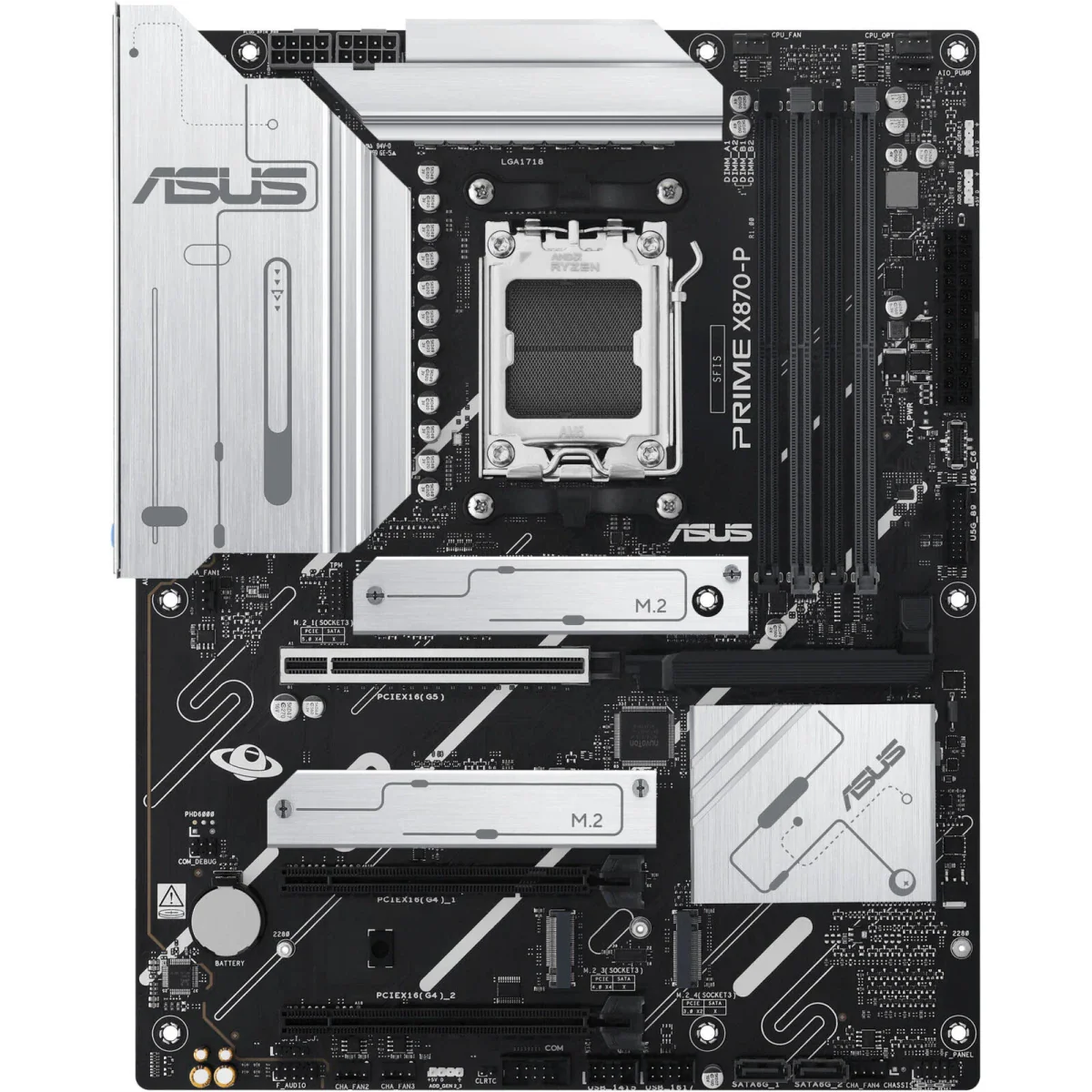

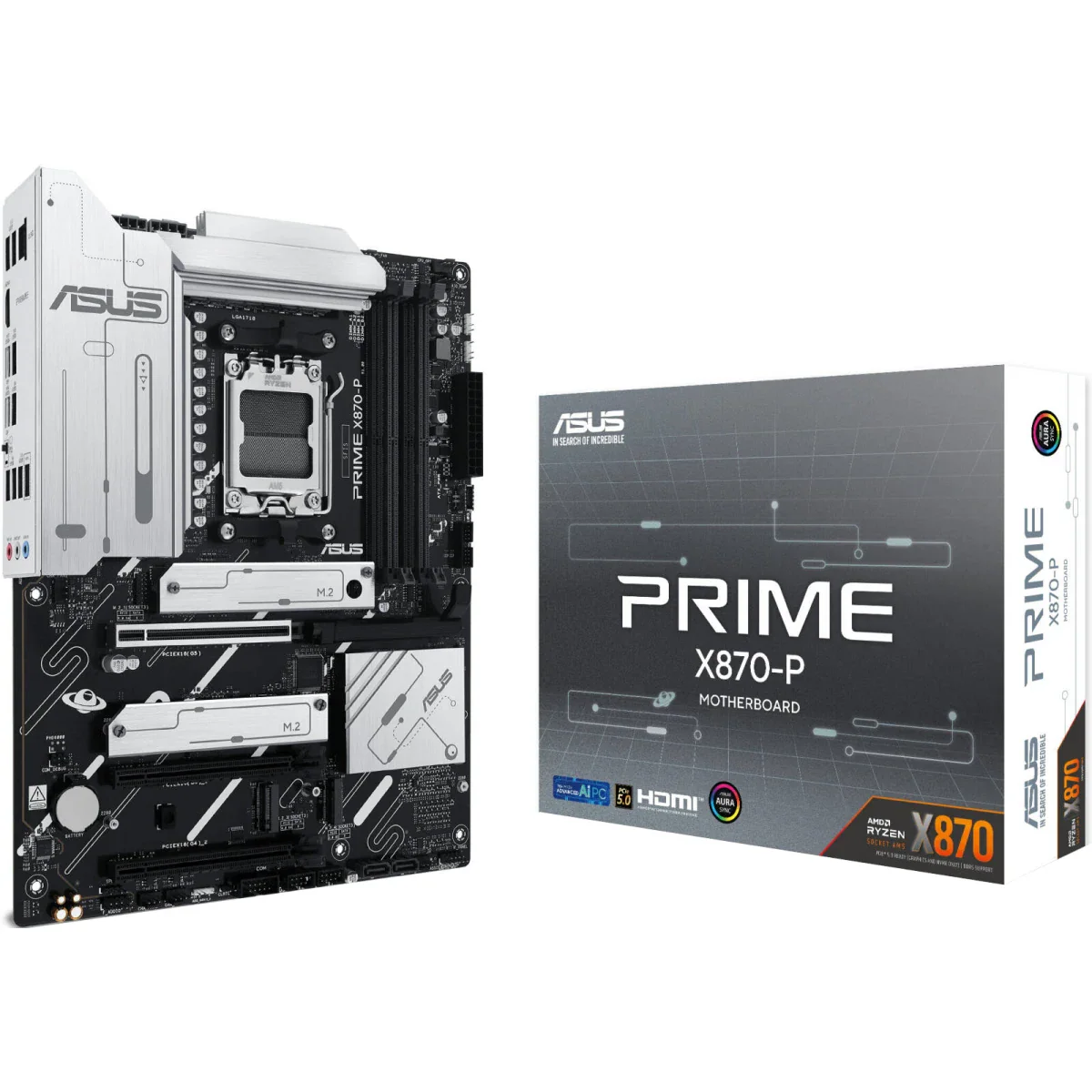

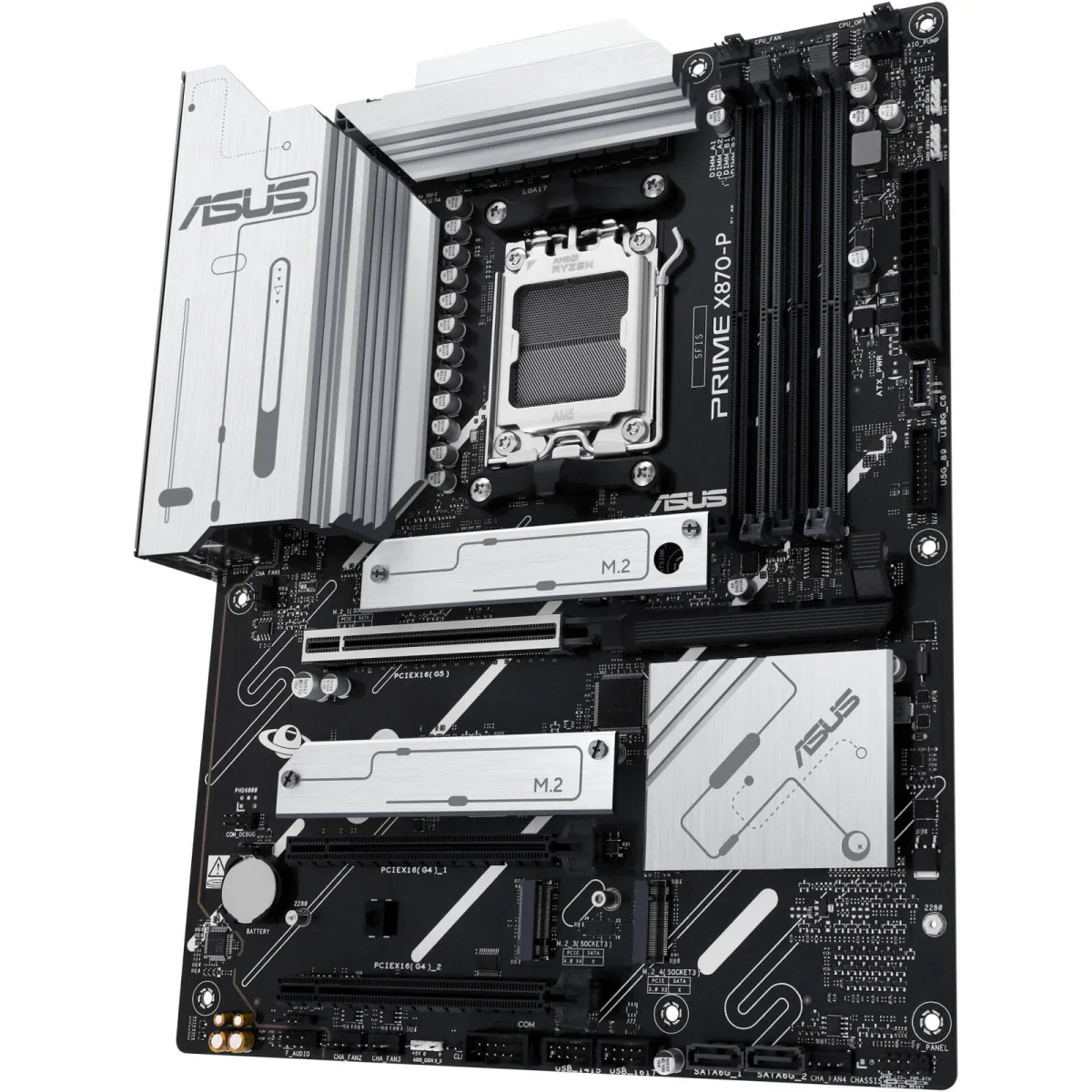

ASUS Prime X870-P AMD X870 AM5 ATX 4x M.2 Slots DDR5 USB 3.2 Gen 2x2 Type-C® USB4® Header & 2.5Gb Ethernet Motherboard

Advanced AI-Ready Performance: ASUS Prime X870-P AMD X870 AM5 ATX Motherboard - Black/Silver

Unleash the power of AMD Ryzen 9000, 8000, and 7000 series processors with the ASUS Prime X870-P AMD X870 AM5 ATX Motherboard - Black/Silver, a budget-friendly yet feature-packed platform for gamers, creators, and PC builders. Built on the AMD X870 chipset, it supports high-speed DDR5 memory up to 8000+ MT/s (OC) and a 192GB capacity, paired with PCIe 5.0 for graphics and storage, including four M.2 slots (one PCIe 5.0 x4). Its 14+2+1 80A DrMOS power design ensures stable performance for high-core-count CPUs, while dual USB4 ports (40Gbps) and a USB 3.2 Gen 2x2 Type-C header deliver cutting-edge connectivity. With Realtek 2.5Gb Ethernet, PCIe Slot Q-Release, and AI-driven features like AI Cooling II and AI Networking II, this motherboard offers robust cooling and optimized performance. The sleek black PCB with silver heatsinks fits minimalist builds, making it ideal for reliable, high-performance systems without the premium cost.

---

Key Features

• AMD X870 Chipset with AM5 Socket: Supports Ryzen 9000, 8000, and 7000 series processors—delivers AI-ready performance for gaming, productivity, and overclocking, as noted for its versatility.

• DDR5 Memory Support: Four DIMM slots with up to 192GB capacity and 8000+ MT/s (OC) via AMD EXPO and ASUS AEMP—ensures blazing-fast multitasking, per citycenter.jo.

• Four M.2 Slots with PCIe 5.0: Includes one PCIe 5.0 x4 slot (128 Gbps), two PCIe 4.0 x4 slots, and one PCIe 3.0 x2 slot—ideal for high-speed NVMe SSDs like the Kingston NV3 4TB, as highlighted by asus.com.

• Dual USB4 Ports (40Gbps): Two rear USB Type-C ports support 40Gbps data transfer and dual 4K display output—perfect for creators and multi-monitor setups, per wepc.com.

• PCIe 5.0 x16 Slot with Q-Release: Supports next-gen GPUs with easy removal—enhances build flexibility, though secondary PCIe slots may disable with M.2 use, as noted by pcguide.com.

• Realtek 2.5Gb Ethernet: Delivers 2.5x faster wired connectivity than standard Gigabit—ensures low-latency gaming and streaming, per amazon.com.

• AI-Enhanced Features: AI Cooling II optimizes fan speeds, AI Networking II prioritizes bandwidth, and AI Overclocking simplifies tuning—streamlines performance, as praised by asus.com.

---

Specifications

Feature	Details
Dimensions	12.0 x 9.6 in (ATX Form Factor)
Weight	~1.5 kg (Approx.)
Socket	AMD AM5
Chipset	AMD X870
CPU Support	AMD Ryzen 9000, 8000, 7000 Series Processors
Memory	4x DDR5 DIMM Slots, Up to 192GB, 4800-8000+ MT/s (OC), ECC/Non-ECC, Unbuffered, Supports AMD EXPO & ASUS AEMP
Graphics Ports	1x HDMI 2.1 (4K@60Hz), 2x USB4 Type-C (DisplayPort 1.4a, 4K@60Hz)
Expansion Slots	Ryzen 9000/7000: 1x PCIe 5.0 x16 (x16 mode); Ryzen 8000: 1x PCIe 4.0 x16 (x8/x4 mode); X870 Chipset: 2x PCIe 4.0 x16 (x1 mode)
Storage	4x M.2 Slots: M.2_1 (2280, PCIe 5.0 x4 for Ryzen 9000/7000, PCIe 4.0 x4 for Ryzen 8000), M.2_2 (2242/2260/2280, PCIe 4.0 x4), M.2_3 (2280, PCIe 4.0 x4), M.2_4 (2280, PCIe 3.0 x2); 2x SATA 6Gb/s Ports
RAID	AMD RAIDXpert2: PCIe RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000); SATA RAID 0/1
Networking	Realtek 2.5Gb Ethernet
Audio	Realtek 7.1 Surround Sound High Definition Audio CODEC

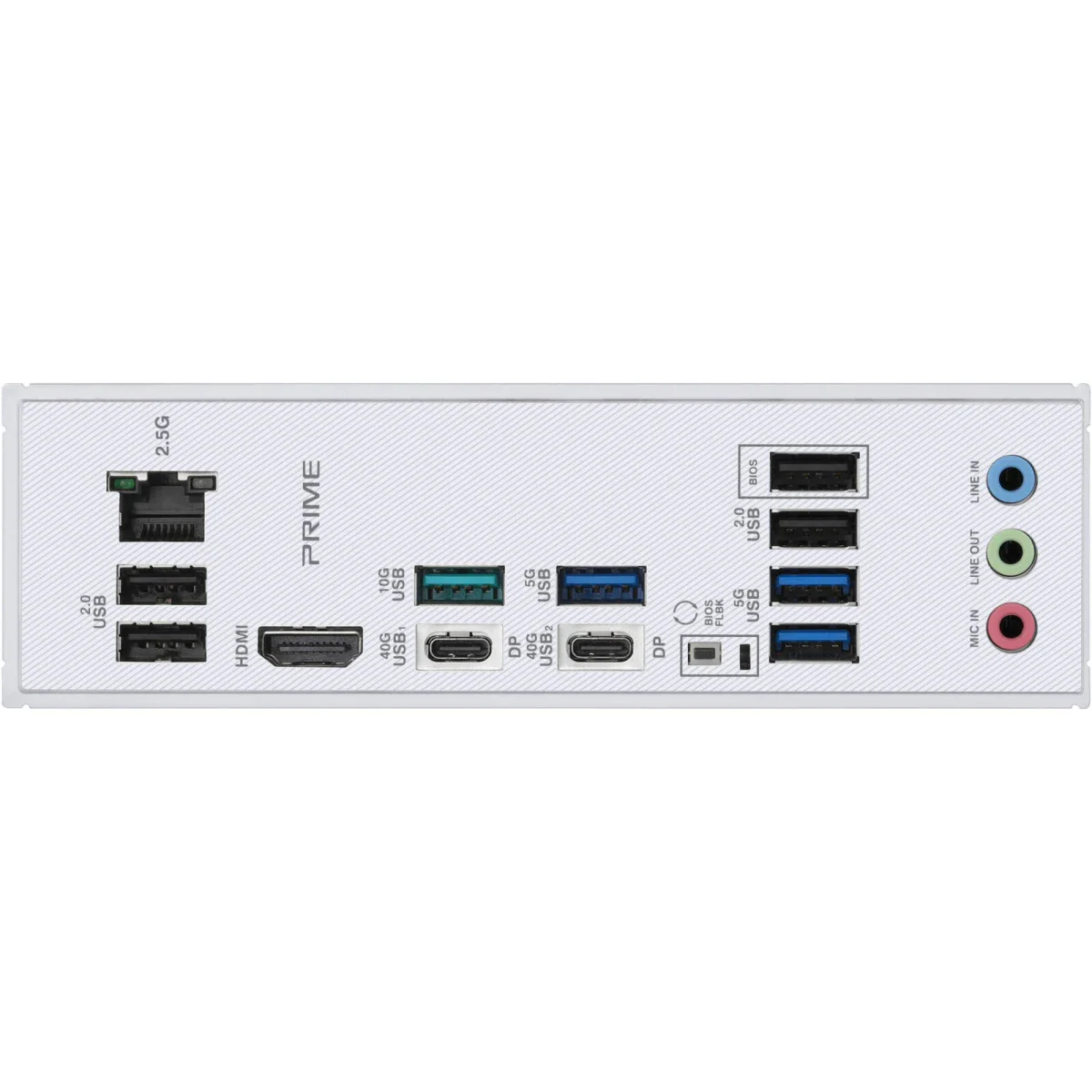

Rear USB Ports	2x USB4 (40Gbps, Type-C), 1x USB 10Gbps (Type-A), 3x USB 5Gbps (Type-A), 4x USB 2.0 (Type-A)
Front USB Ports	1x USB 10Gbps (Type-C), 1x USB 5Gbps Header (2x USB 5Gbps Ports), 2x USB 2.0 Headers (4x USB 2.0 Ports)
Other I/O	3x Audio Jacks, 1x BIOS FlashBack Button
Internal Connectors	1x 24-pin Main Power, 2x 8-pin +12V CPU, 1x 4-pin CPU Fan, 1x 4-pin CPU OPT Fan, 1x 4-pin AIO Pump, 4x 4-pin Chassis Fan, 1x Clear CMOS, 1x COM Port, 1x Front Panel Audio, 1x S/PDIF Out, 1x SPI TPM (14-1 pin), 1x 10-1 pin System Panel
Cooling	VRM Heatsink, Dual M.2 Heatsinks, PCH Heatsink, Hybrid Fan Headers, Fan Xpert 4 with AI Cooling II
Features	PCIe Slot Q-Release, M.2 Q-Latch, BIOS FlashBack, ASUS OptiMem II, AI Cooling II, AI Networking II, AI Overclocking, Aura Sync RGB
Color	Black PCB with Silver Heatsinks
